Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)

Mimosa B11, 1,5Gbps PtP backhaul (one unit, without antenna)
Your price incl. VAT (20.0%)
8,270.27 RON
Ordered for stock
Delivery Planned Delivery Date by Courier to you 24-07-2024
Mimosa
Manufacturer
Product number
100-00036(B11)
Product Code
RL015.695
Warranty
24 months

Product description

Mimosa’s B11 backhaul radio is designed for the modern Internet era, adapting instantly to variable upstream and downstream bandwidth requirements at the lowest cost per Mbps in the industry.

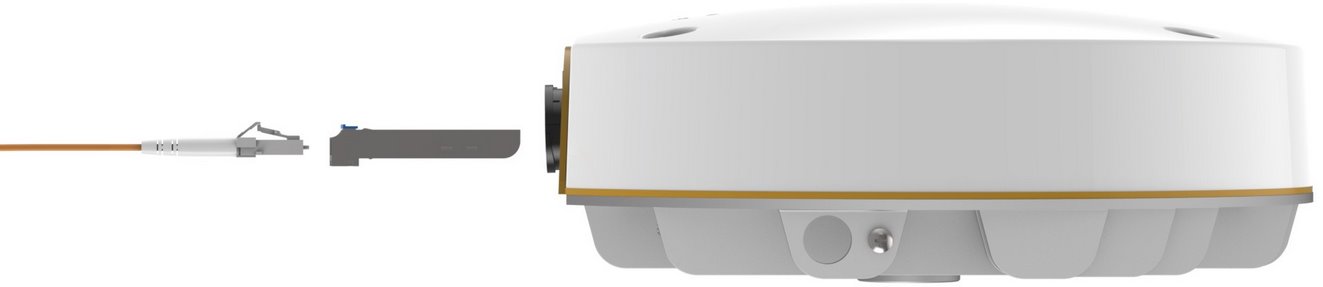

Just Add Fiber

Fiber to wireless is the future of connectivity, and the B11 is ready for it. Simply add your preferred SFP module and you’ll be lit up with gigabit fiber speeds. If you’re not quite ready for fiber, the B11 also offers a standard Gigabit Power-over-Ethernet connection.

Mimosa B11

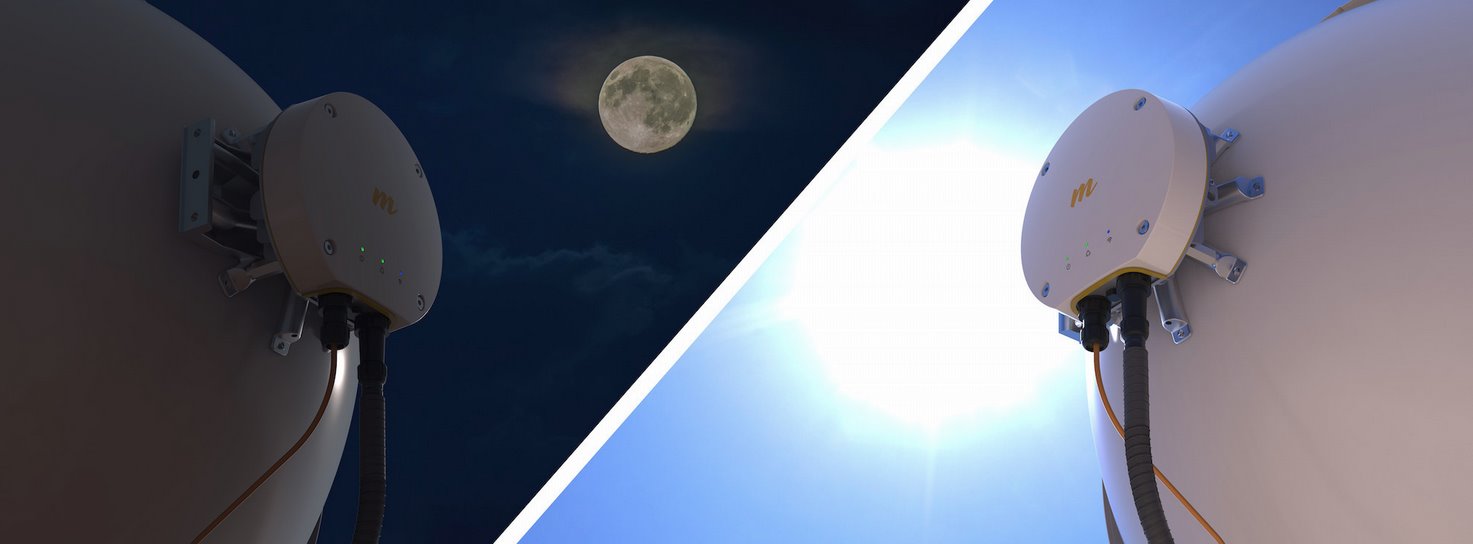

Bandwidth Changes like Night & Day

During peak evening hours, downloads and video streaming now represent nearly 90% of traffic, while daytime symmetric services and prioritized upstream traffic are as critical as ever to businesses. Legacy FDD radios are limited to symmetric traffic usage, leaving vast amounts of spectrum constantly underutilized. The B11, however, can dynamically adapt to bandwidth demand using Auto-TDMA technology, maximizing spectrum utilization throughout the day.

Mimosa B11

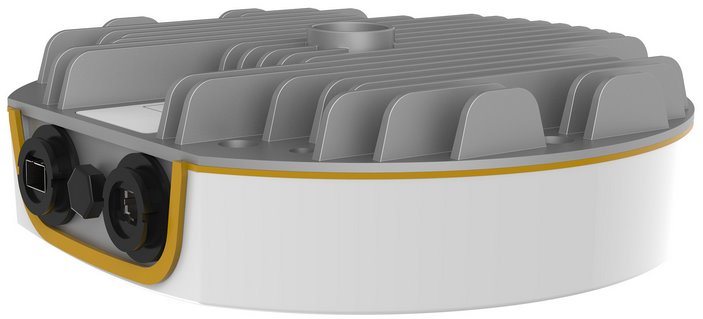

Precision Engineered for Reliability

Licensed spectrum has always been preferred for its increased link reliability. Now, with the precision engineering of the B11, you can enjoy spectrum efficiency, incredible industry-leading stability, and for the first time groundbreaking dynamic bandwidth control.

Mimosa B11

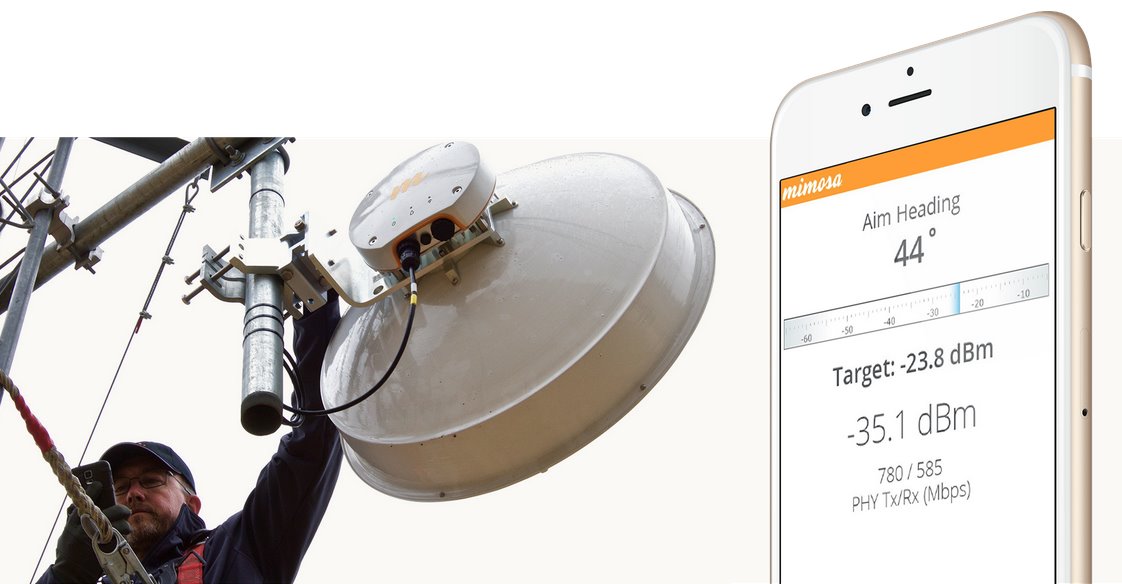

Right on Target

In the past, aiming your antenna to find the best signal was more art than science. We’ve taken the guesswork out of antenna aiming by adding 2.4 GHz Wi-Fi right in the radio, turning any smartphone into the most sophisticated aiming tool on the planet! Now installers can both view radio details and target signal levels instantaneously with the most precise aiming technology available in the industry.‡

Mimosa B11

Package contains

  • B11 Unit
  • PoE power adapter 56V/0.93A
  • Power cord
  • Screws
  • (2) Cable gland

Download

https://download.discomp.cz/mimosa/datasheet/B11.pdf
Download Datasheet
https://download.discomp.cz/mimosa/overview/B11_Product_Overview.pdf
Download Product overview
https://mimosa.co/firmware
Download Firmware

Technical parameters

LAN ports
Power over Ethernet
802.3at, 48 .. 56V DC
MIMO, SISO
4 x 4
Sensitivity [dBm]
-93
Wind load [km/h]
200
Frequency range [MHz]
10000 - 11700
Maximum modulation
256 QAM
Channel bandwidth [MHz]
80, 40, 20
Operating mode
Access Point, Client
Management
Web management
Wireless frequency
11 GHz, 10 GHz
Transmission speed - 10GHz [Mb/s]
1733
Transmission speed - 11GHz [Mb/s]
1733
Tx power 10GHz [dBm]
27
Security
128bit AES
Type of antenna
Detachable
Purpose
Outdoor
Power type
PoE
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
SFP cages
1
Optical interfaces
(1) 1000Mbps
Max. power consumption [W]
30
Operating temperature [°C]
-40 up to 55
Width [mm]
158
Height [mm]
260
Depth [mm]
70
IPv6 support
Yes
Default IP address
192.168.1.20
Default login and password
Is set by the user at the first startup
