Ubiquiti NanoStation M5

Ubiquiti NanoStation M5
Your price incl. VAT (20.0%)
425.71 RON
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 11-12-2024
Ubiquiti Networks
Manufacturer
Product number
NSM5
Product Code
RL015.109
Warranty
24 months

Product description

UBNT NanoStation M5 is a powerful completely outdoor unit including 2x 16dBi (2x2 MIMO) antennas for the 5GHz band as a CPE solution suitable for shorter distances. The unit allows transmission speed up to 300Mbps. Compared to its predecessor has a stronger processor clocked at 400MHz and bigger memory.

Dual Ethernet Connectivity

With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.

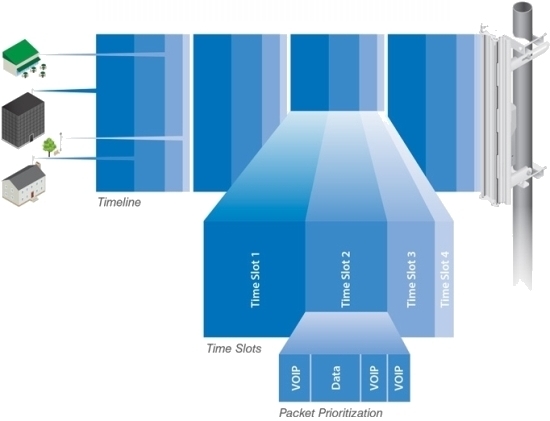

Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in multipoint networks.

Package contains

  • Device
  • PoE power adapter
  • Power cord
  • (2) mounting ties

Download

https://download.discomp.cz/Ubiquiti/CE/nanoM5_CE_DoC.pdf
Download CE
https://download.discomp.cz/Ubiquiti/Datasheets/nsm_ds_web.pdf
Download Datasheet
https://download.discomp.cz/Ubiquiti/QSG/NanoStation_M_Loco_M_QSG.pdf
Download Quick Start Guide
https://www.ubnt.com/download/?group=nanostationm
Download Firmware

Technical parameters

LAN ports
Power over Ethernet
24V DC
Operating mode
Client, Repeater, AP Router, Access Point, Client Router (wisp)
Wireless frequency
5 GHz
WiFi standards
802.11a, 802.11n, airMAX
Transmission speed - 5GHz [Mb/s]
300
Tx power 5GHz [dBm]
23
Security
WPA2 AES
5GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Purpose
Outdoor
Antenna gain [dBi]
16
LAN ports
2
LAN speed
(2) 10/100Mbps
PoE type
PoE-Out + PoE-In
Max. power consumption [W]
8
Buttons
Reset
Operating temperature [°C]
-30 up to 75
Weight [g]
400
Width [mm]
80
Height [mm]
294
Depth [mm]
31
CPU
Atheros MIPS 24KC
CPU frequency [MHz]
400
IPv6 support
Transparent (bridge mode)
Default IP address
192.168.1.20
RAM [MB]
32
Default login and password
ubnt / ubnt
