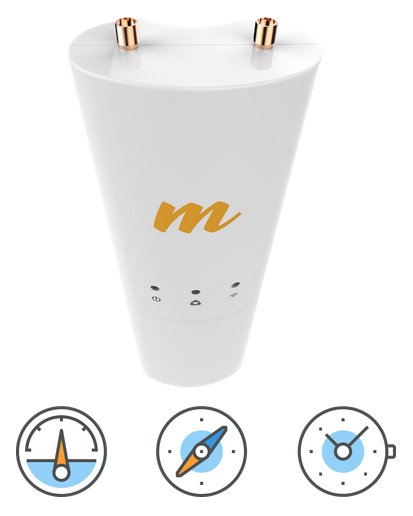

Mimosa C5c, PTP and PtMP unit, 2x RSMA female
Your price incl. VAT (20.0%)
884.62 RON
Ordered for stock
Planned Delivery Date by Courier to you 04-09-2024
40.13 RON excl. VAT
Product description
C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 500+ Mbps of TCP throughput.
Package contains
- Device
- Metal ring
- Self-vulcanizing tape
Download
Technical parameters
LAN ports
Power over Ethernet
24 .. 56V DC
Sensitivity [dBm]
-93
Operating mode
Bridge, Client
Wireless frequency
5 GHz
WiFi standards
Mimosa SRS, WiFi Interop
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
866
Tx power 5GHz [dBm]
27
Security
WPA2 PSK & Enterprise 802.1x;Radius provisioning, COA, DM; 128-bit AESwith hardware acceleration
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
2
RF connectors
(2) RSMA female
Purpose
Outdoor
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
12,9
Operating temperature [°C]
-40 up to 55
Weight [g]
295
Width [mm]
65
Height [mm]
188
Depth [mm]
44
Default IP address
192.168.1.20
Default login and password
Is set by the user at the first startup
