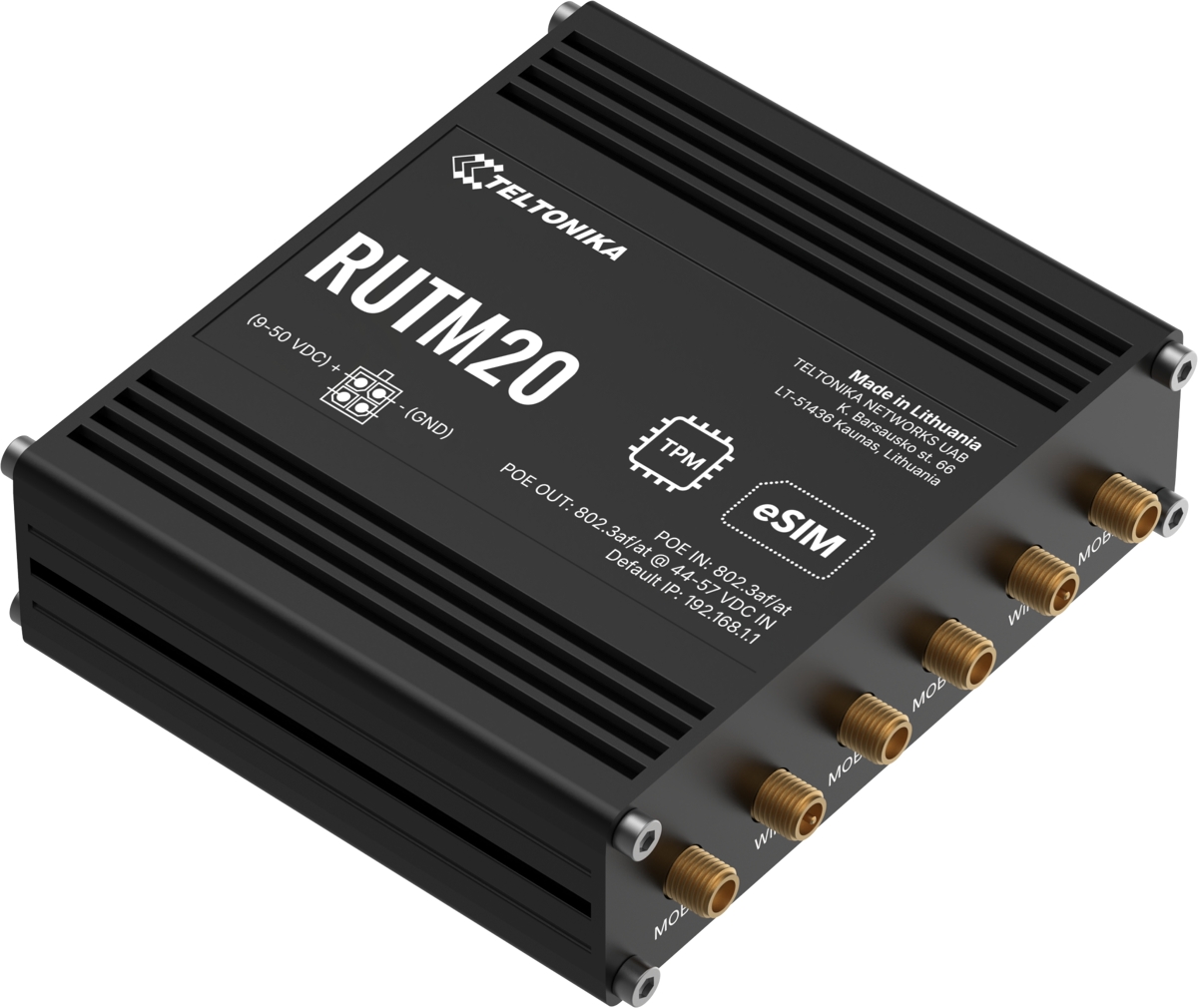

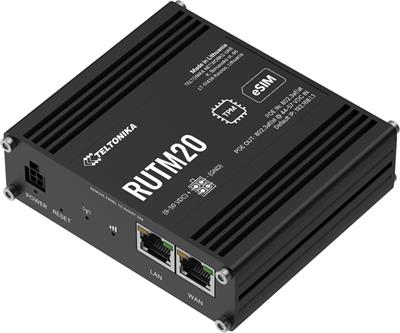

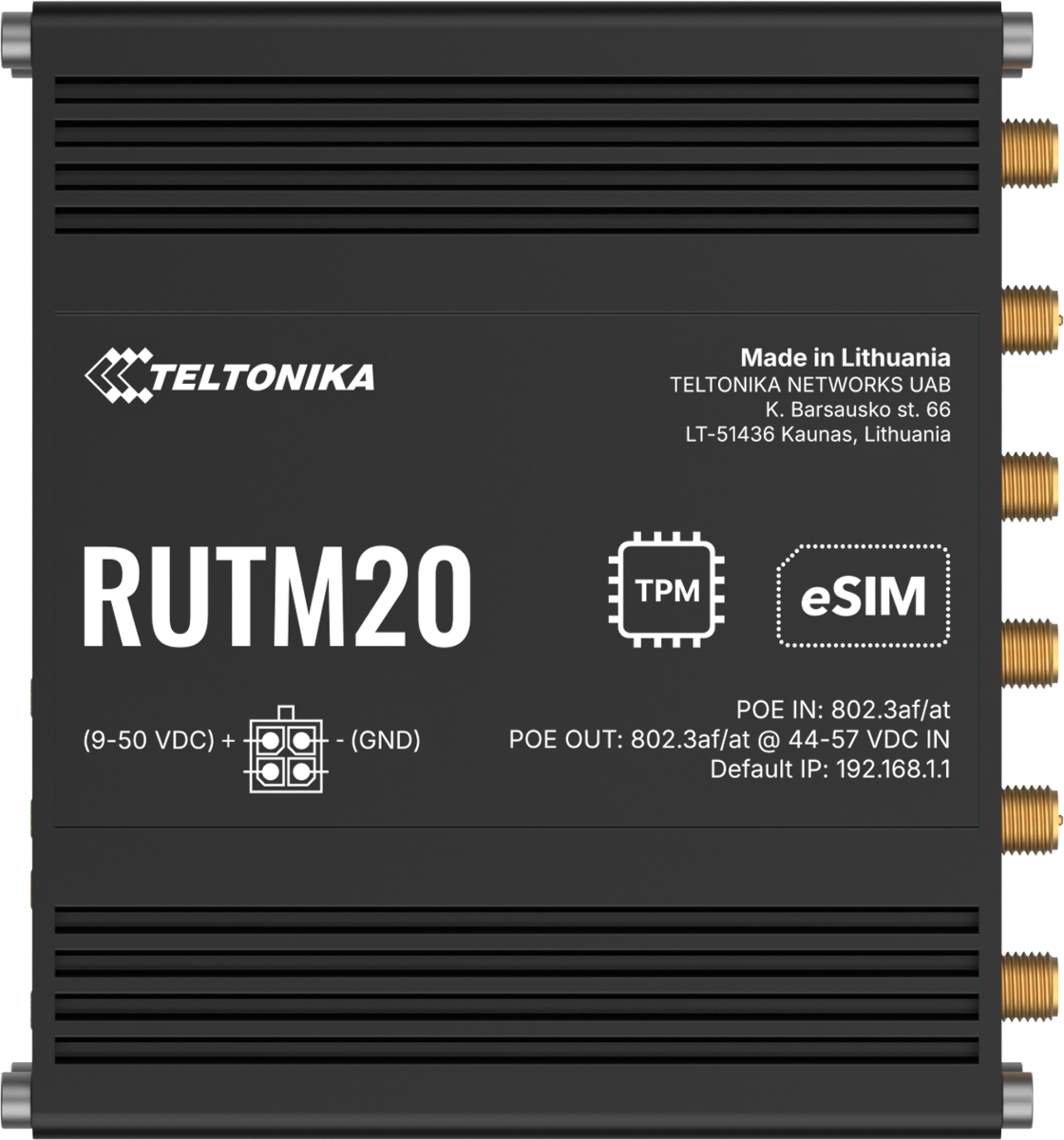

Teltonika RUTM20, Industrial 5G Wi-Fi 5 router
Your price incl. VAT (20.0%)
2,871.28 RON
❌ Articolul nu este disponibil. Nu există opțiune de a comanda.
Nicio dată de livrare confirmată
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af, 802.3at, 18 .. 50V DC
Protection class
IP30
Design
Industry
Max. WAN speed
1G
Operating mode
Client, AP Router, Access Point, Cellular router
Wireless frequency
2.4 + 5 GHz (dual band), LTE, 3G (GSM), 5G (GSM)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ac - wave2
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 2.4GHz [Mb/s]
300
Security
WPA, WPA2, WPA3
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Detachable
Detachable antennas
6

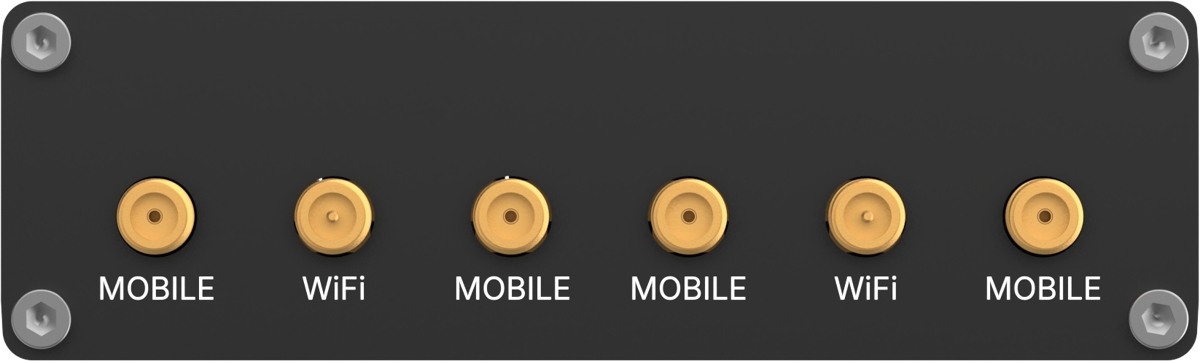

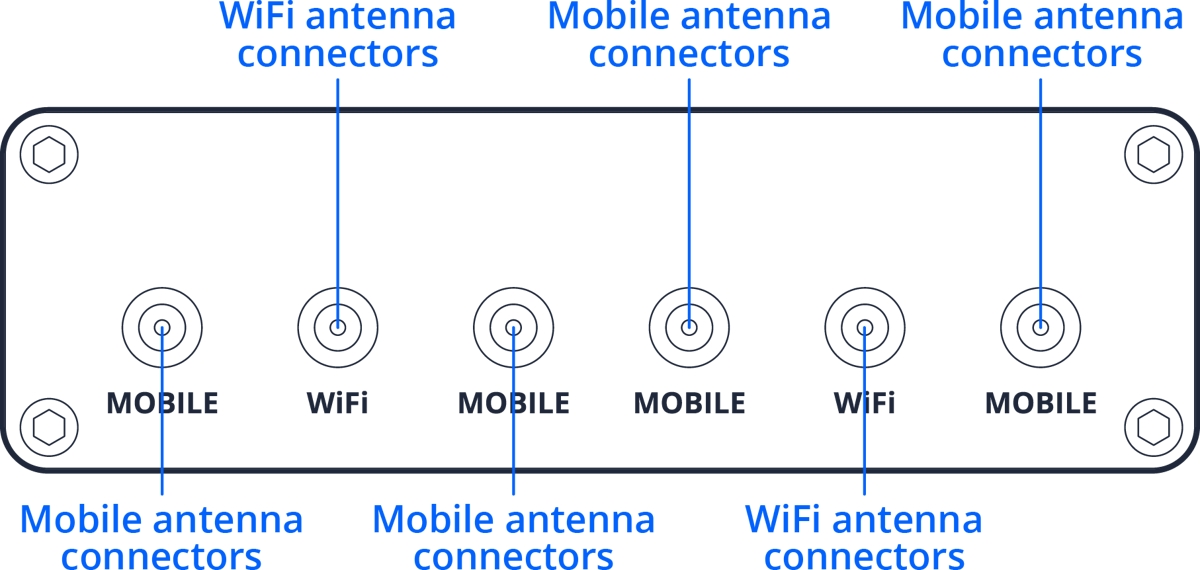

RF connectors
(4) SMA female, (2) RP-SMA female
Integrated 4G/LTE radio part
Yes
Power type
PoE, 4-pin automotive
4G/LTE bands support
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (12) 700 MHz, (42) 3500 MHz, (43) 3700 MHz, (17) 700 MHz, (25) 1900 MHz, (26) 850 MHz, (39) 1900 MHz, (28) 700 MHz, (66) 1700 MHz, (71) 600 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (32) 1500 MHz, (34) 2000 MHz, (14) 700 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz, (n66) 1700 MHz, (n71) 600 MHz, (n26) 850 MHz, (n2) 1900 MHz, (n12) 700 MHz, (n13) 700 MHz, (n14) 700 MHz, (n18) 850 MHz, (n25) 1900 MHz, (n30) 2300 MHz, (n48) 3500 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN speed
(1) 10/100/1000Mbps + (1) 10/100/1000Mbps LAN/WAN
LAN ports 1G
2
Gigabit LAN
Yes
PoE type
PoE-Out + PoE-In
PoE-Out standards
802.3af, 802.3at
PoE Out ports
1
PoE budget [W]
30
Max. power consumption [W]
8,5
Power via connector/terminal
9 .. 50V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
319
Width [mm]
100
Height [mm]
30
Depth [mm]
94
CPU
MIPS1004Kc
CPU frequency [MHz]
880
SIM slot
Yes
SIM slots quantity
2
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
256
RAM [MB]
256
Default login and password
admin / (preset password, see label/engraving)
