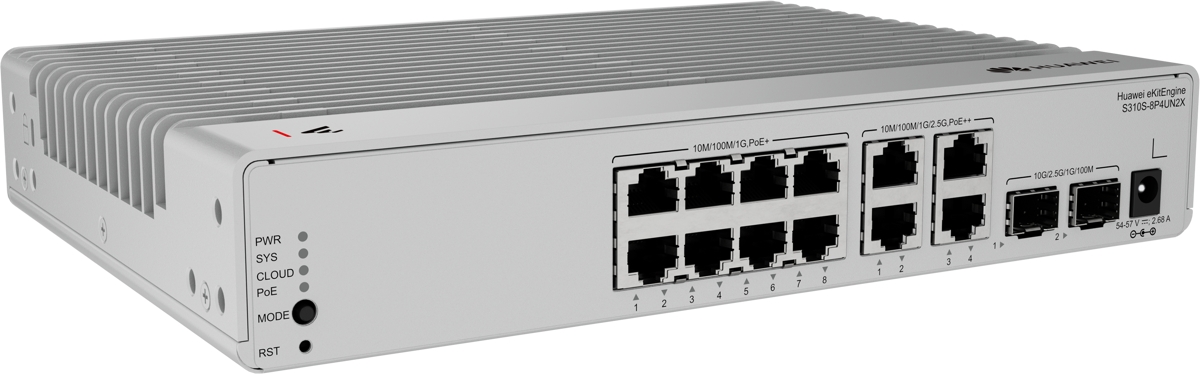

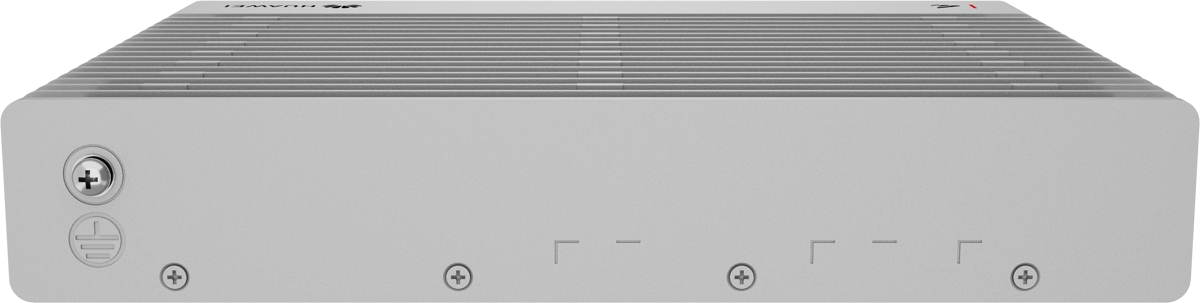

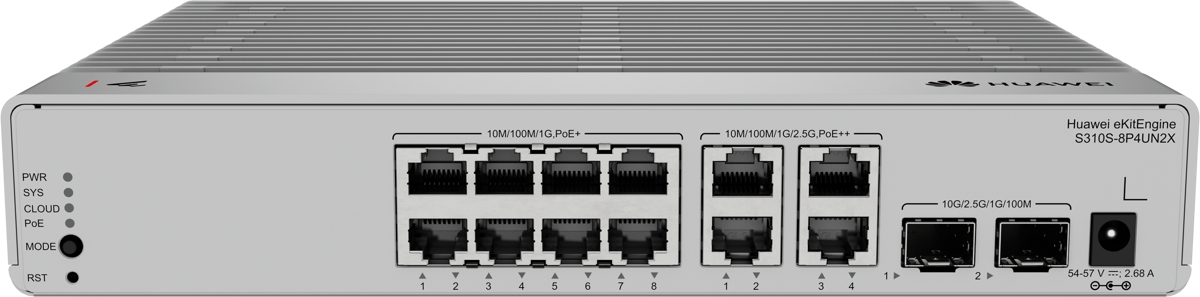

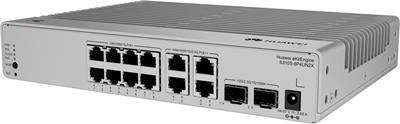

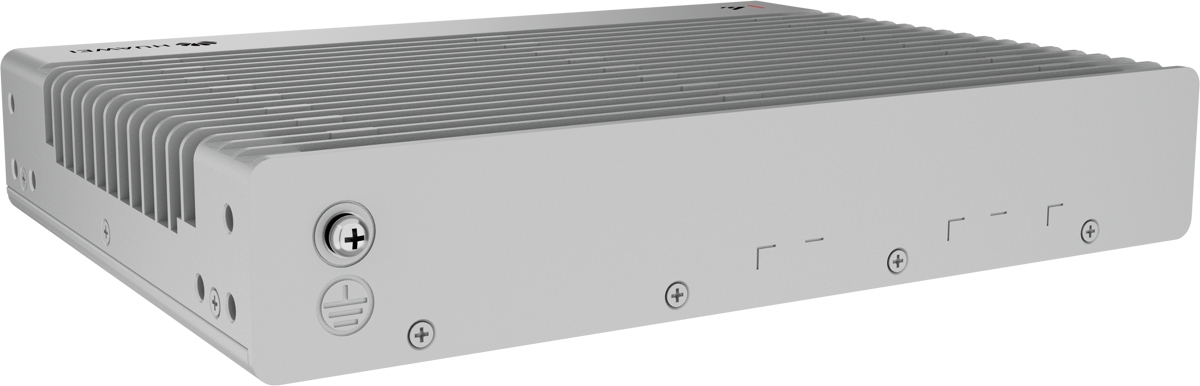

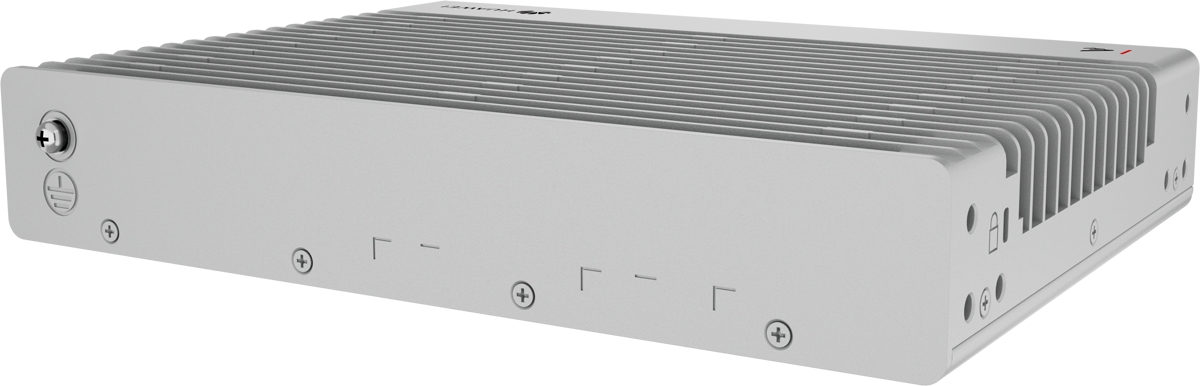

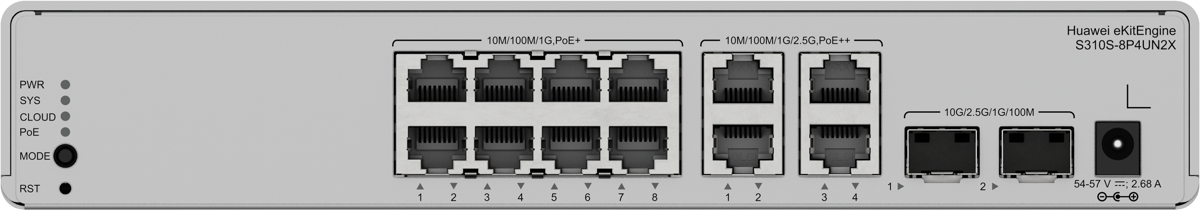

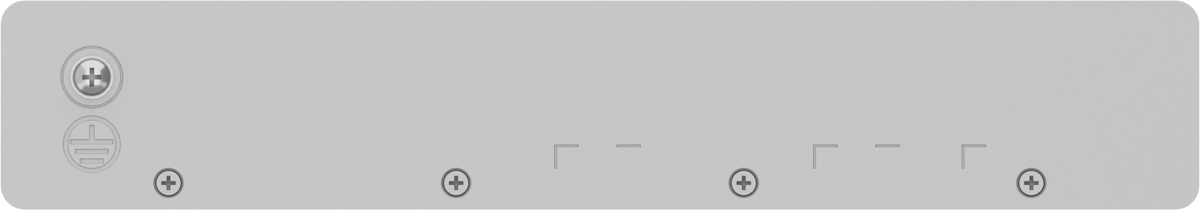

Huawei S310S-8P4UN2X 2.5G Cloud PoE Switch

Huawei S310S-8P4UN2X 2.5G Cloud PoE Switch
Your price incl. VAT (20.0%)
1,175.99 RON
Comandat pentru disponibilitate
Delivery Nicio dată de livrare confirmată
Manufacturer
Huawei
Product number
S310S-8P4UN2X
Product Code
RL030.255
Warranty
36 months

Having a question?
You have a choice of 2 variants
Huawei S310S-4P8UN2X 2.5G Cloud PoE Switch
S310S-4P8UN2X
1,112.31 RON excl. VAT
Huawei S310S-8P4UN2X 2.5G Cloud PoE Switch
S310S-8P4UN2X
979.99 RON excl. VAT
Masterlan patch cable UTP, Cat5e, 1m, yellow
Masterlan patch cable UTP, Cat5e, 1m, yellowPCU5E-1YW-MS
1.73 RON excl. VAT
Adaugă in coş
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
Masterlan comfort patch cable UTP, Cat5e, 5m, grayPCU5E-5-MSC
9.86 RON excl. VAT
Adaugă in coş
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDM
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDMML-S+85D-03
30.52 RON excl. VAT
Adaugă in coş
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDMML-S+31D-10
50.83 RON excl. VAT
Adaugă in coş
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
67.44 RON excl. VAT
Adaugă in coş
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDM
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
67.44 RON excl. VAT
Adaugă in coş

Download

https://download.discomp.cz/Huawei/Datasheets/Huawei_eKitEngine_S310S_Series_Switches_Datasheet.pdf
Download Datasheet
https://download.discomp.cz/Huawei/Manuals/S220S%20and%20S310S%20Series%20Switches%20Hardware%20Description.pdf
Download HW Description

Technical parameters

LAN ports
Design
Rackmount
Packet forwarding rate [Mpps]
56
Switchning capacity [Gbps]
76
MAC address table
16000
Web management
Yes
Management
Web management, eKit cloud / eKit app, Mobilní aplikace
Features
L2+, VLAN, QoS, DHCP snooping
Power type
DC connector
"U" positions
1
Fans
No
LAN ports
12
LAN speed
(8) 10/100/1000Mbps + (4) 100/1000/2500Mbps
Max. LAN ports speed
2.5G
PoE type
PoE-Out (only)
SFP+ cages
2 (1G/10G support)
Optical interfaces
(2) 1G/2.5G/10G
PoE-Out standards
802.3af, 802.3at, 802.3bt
PoE Out ports
12
PoE budget [W]
125
Max. power consumption [W]
160
Chassis design
Metal
Power via connector/terminal
54 .. 57V DC
Buttons
Reset, mode
Operating temperature [°C]
-5 up to 45
Weight [g]
2510
Depth [mm]
180
Width [mm]
250
Height [mm]
44
Default IP address
192.168.1.253
Default login and password
Is set by the user at the first startup
