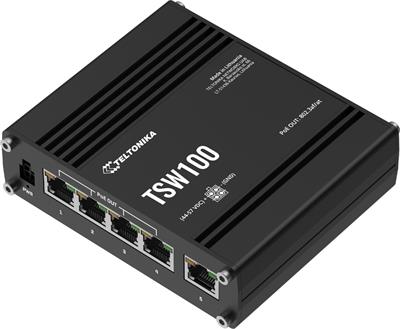

Teltonika TSW100 Industrial Unmanaged Switch

Teltonika TSW100 Industrial Unmanaged Switch
Your price incl. VAT (20.0%)
303.79 RON
✅ În stoc 10+ Бр.
Delivery Data de livrare planificată prin curier către dvs 15-10-2025
Teltonika
Manufacturer
Product number
TSW100010000
Product Code
RL030.032
Warranty
24 months

Download

https://download.discomp.cz/Teltonika/Datasheets/TSW100v2.pdf
Download Datasheet
https://wiki.teltonika-networks.com/view/TSW100_First_Start
Download Link to Quick Start Guide
https://wiki.teltonika-networks.com/view/TSW100_Manual
Download Link to User Manual

Technical parameters

LAN ports
Design
Industry, DIN rail
Switchning capacity [Gbps]
10
Jumbo frame [Bytes]
9216
MAC address table
2000
Power type
4-pin automotive
Fans
No

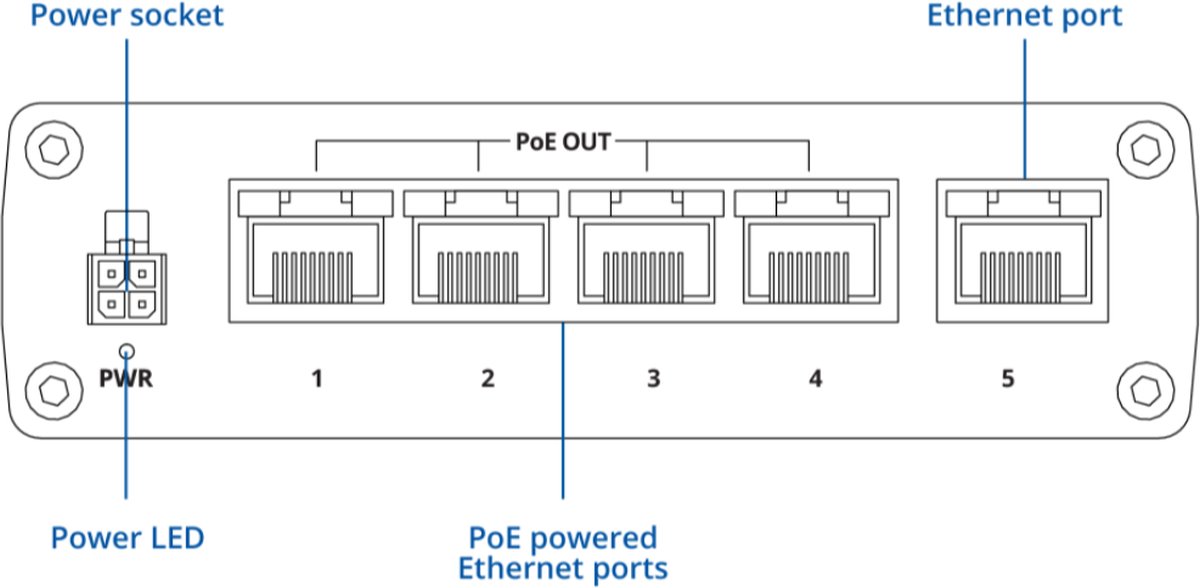

LAN ports
5
LAN speed
(5) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
PoE-Out standards
802.3af, 802.3at

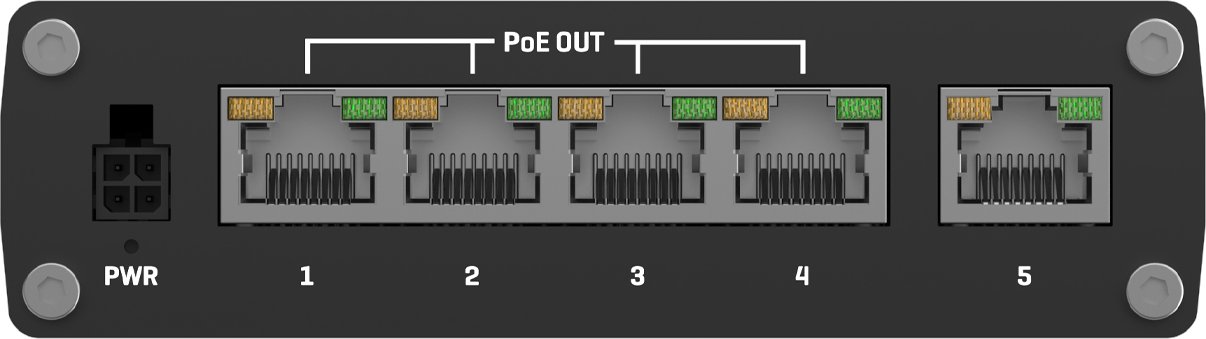

PoE Out ports
4
PoE budget [W]
120
Max. power consumption [W]
130
Chassis design
Metal
Power via connector/terminal
7 .. 57V DC
Operating temperature [°C]
-40 up to 75
Weight [g]
350
Width [mm]
115
Height [mm]
32
Depth [mm]
101
