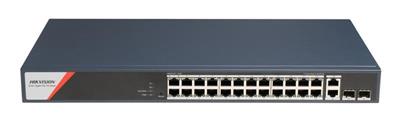

Hikvision DS-3E1528HP-SI-24P2T2F PoE Smart managed Switch, 24x PoE, 370W

Hikvision DS-3E1528HP-SI-24P2T2F PoE Smart managed Switch, 24x PoE, 370W
Your price incl. VAT (20.0%)
2,358.83 RON
✅ Disponibilitate într-un partener extern
Delivery Data de livrare planificată prin curier către dvs 19-11-2025
Hikvision
Manufacturer
Hikvision
Product number
DS-3E1528HP-SI-24P2T2F
Product Code
RL029.855
Warranty
36 months

Having a question?
You have a choice of 3 variants
Hikvision DS-3E1512HP-SI-8P2T2F PoE Smart managed Switch, 8x PoE, 130W
DS-3E1512HP-SI-8P2T2F
871.48 RON excl. VAT
Hikvision DS-3E1520HP-SI-16P2T2F PoE Smart managed Switch, 16x PoE, 230W
DS-3E1520HP-SI-16P2T2F
1,502.61 RON excl. VAT
Hikvision DS-3E1528HP-SI-24P2T2F PoE Smart managed Switch, 24x PoE, 370W
DS-3E1528HP-SI-24P2T2F
1,965.69 RON excl. VAT
MaxLink 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC connector, DDM
MaxLink 1.25G SFP optical module, SM, 1310nm, 20km, 2x LC connector, DDMML-S31D-20
23.22 RON excl. VAT
Adaugă in coş
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDM
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
22.14 RON excl. VAT
Adaugă in coş
MaxLink 1.25G SFP optical module, MM, 850nm, 550m, 2x LC connector, DDM
MaxLink 1.25G SFP optical module, MM, 850nm, 550m, 2x LC connector, DDMML-S85D-05
22.78 RON excl. VAT
Adaugă in coş
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDM
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
30.17 RON excl. VAT
Adaugă in coş
Masterlan patch cable UTP, Cat5e, 1m, yellow
Masterlan patch cable UTP, Cat5e, 1m, yellowPCU5E-1YW-MS
1.73 RON excl. VAT
Adaugă in coş
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
Masterlan comfort patch cable UTP, Cat5e, 5m, grayPCU5E-5-MSC
9.76 RON excl. VAT
Adaugă in coş
Gembird Power cord 230V, 1,8m, angled
Gembird Power cord 230V, 1,8m, angledPC-186A-VDE
19.37 RON excl. VAT
Adaugă in coş
MaxLink 1.25G SFP optical module, SM, 1310nm, 3km, 2x LC connector, DDM
MaxLink 1.25G SFP optical module, SM, 1310nm, 3km, 2x LC connector, DDMML-S31D-3
22.53 RON excl. VAT
Adaugă in coş

Download

https://download.discomp.cz/hikvision/datasheets/DS-3E1528HP-SI-24P2T2F.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Desktop, Rackmount
Switchning capacity [Gbps]
56
MAC address table
8000
Packet forwarding rate [Mpps]
41,7
Management
iVMS-4200
Features
VLAN, QoS, DHCP snooping
Power type
Mains power (230V)
Fans
Yes
LAN ports
26
LAN speed
(26) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at, 802.3bt
PoE Out ports
24
PoE budget [W]
370
Long range PoE - up to 250m
Yes
Max. power consumption [W]
400 Gbps
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
0 up to 45
Weight [g]
2980
Width [mm]
440
Height [mm]
44
Depth [mm]
221
Default IP address
Dynamic from DHCP
