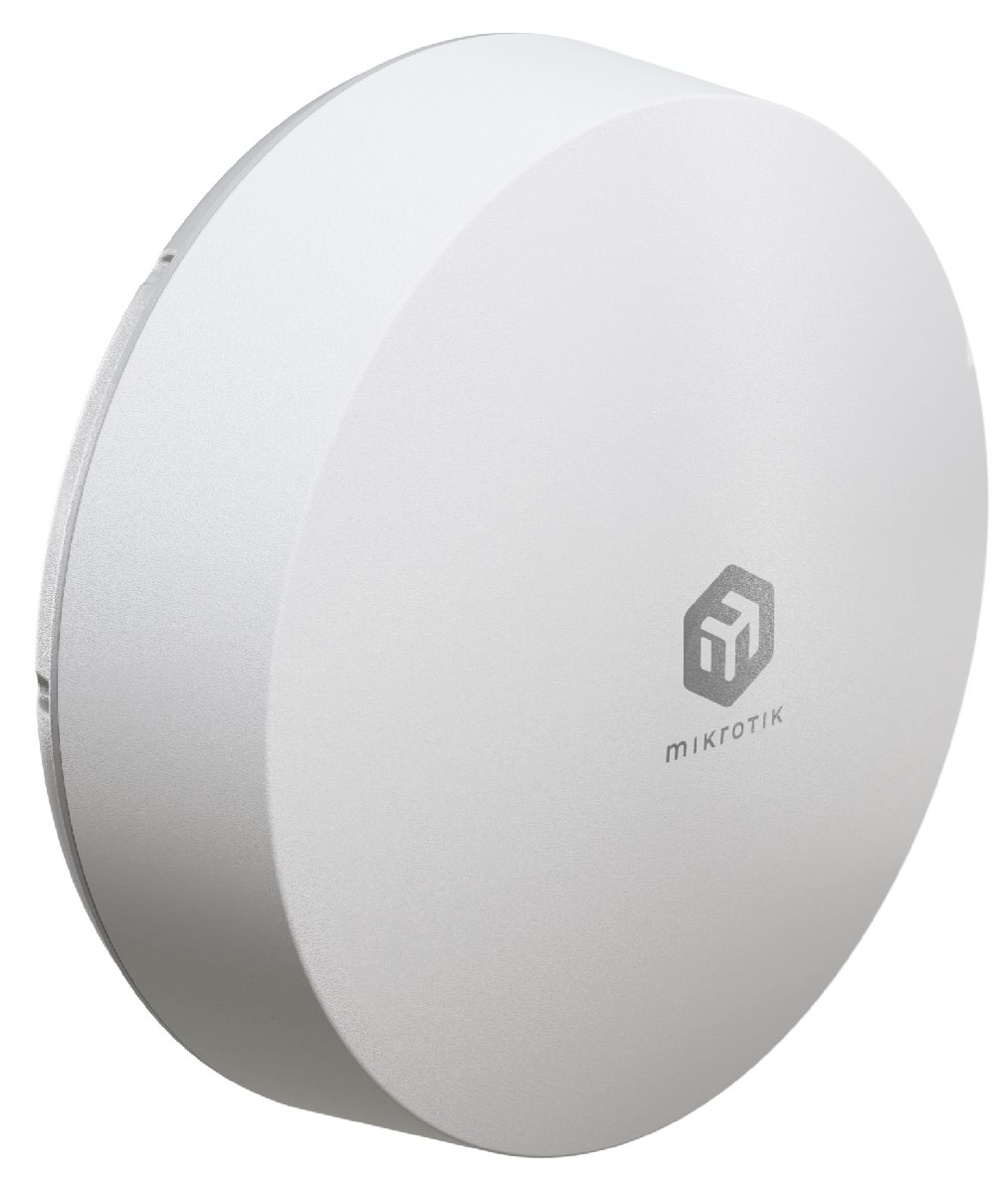

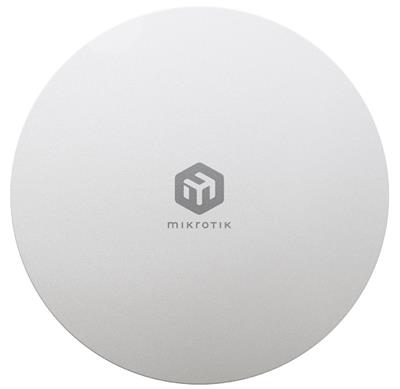

MikroTik ATL 5G R16
Your price incl. VAT (20.0%)
1,607.68 RON
Comandat pentru disponibilitate
Data de livrare planificată prin curier către dvs 24-12-2025
43.58 RON excl. VAT
Download
Technical parameters
LAN ports
Design
Outdoor
M.2 slots
1
Power over Ethernet
802.3af, 802.3at, 12 .. 56V DC
Protection class
IP66
Operating mode
Cellular router
Wireless frequency
5G (GSM)
Type of antenna
Built-in
Antenna gain [dBi]
16
Integrated 4G/LTE radio part
Yes
Power type
PoE
4G/LTE bands support
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (28) 700 MHz, (32) 1500 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz
Operating system
RouterOS v7 - L3
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
10
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Depth [mm]
179
Width [mm]
311
Height [mm]
311
CPU
88F3720
CPU frequency [MHz]
800
CPU cores
2
SIM slots quantity
1
SIM slot
Yes
IPv6 support
Yes
Internal storage [MB]
32
RAM [MB]
512
Default login and password
admin / (preset password, see label/engraving)
