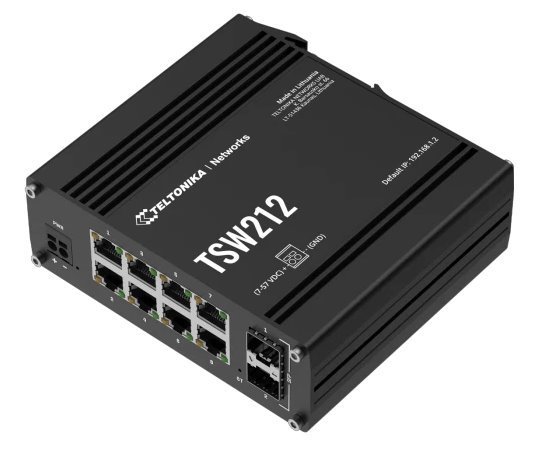

Teltonika TSW212 Managed Network Switch
Your price incl. VAT (20.0%)
546.94 RON
✅ În stoc 20+ Бр.
Data de livrare planificată prin curier către dvs 20-11-2024
24.50 RON excl. VAT
24.70 RON excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
24.06 RON excl. VAT
25.00 RON excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
32.98 RON excl. VAT
Product description
This is an automatic translation. You can see the original text hereTSW212 is an L2 Teltonika Networks managed switch with additional L3 features, like DHCPv6 client support and static IPv6 routing for greater network management. This switch supports multiple industrial protocols, including EtherNet/IP, PROFINET, and MRP, and has 8x1G LANports and 2x SFP ports to ensure robust long-range fibre optic communication. Encased in rugged aluminum housing, the TSW212 excels in withstanding extreme temperatures and resisting severe vibrations – all with effortless installation thanks to an integrated DIN rail mount.
Key Features
- 8x1G LAN and 2xSFP
- Support for EtherNet/IP, PROFINET, and MRP
- Rugged design
- Integrated DIN rail mount
Package Contents
- Switch
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
Design
DIN rail, Industry
Switchning capacity [Gbps]
20
MAC address table
8000
Jumbo frame [Bytes]
10000
Packet forwarding rate [Mpps]
14,9
Web management
Yes
Management
Web management
Features
VLAN
Power type
DC terminal
Fans
No
LAN ports
8
LAN speed
(8) 10/100/1000Mbps
Max. LAN ports speed
1G
SFP cages
2
Optical interfaces
(2) 1000Mbps
Max. power consumption [W]
6
Chassis design
Metal
Power via connector/terminal
7 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Width [mm]
132
Height [mm]
44
Depth [mm]
122
Default IP address
192.168.1.2
Default login and password
admin / (preset password, see label/engraving)
