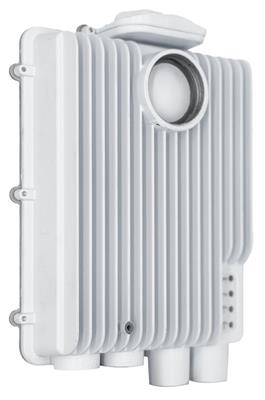

Mimosa B6x
Your price incl. VAT (20.0%)
3,232.80 RON
Comandat pentru disponibilitate
Data de livrare planificată prin curier către dvs 08-01-2025
39.29 RON excl. VAT
Download
Technical parameters
LAN ports
Sensitivity [dBm]
-93
Maximum modulation
1024 QAM
Power over Ethernet
24V DC
Protection class
IP67
F/B ratio [dB]
21
Operating mode
Client
Wireless frequency
5 GHz, 6 GHz
WiFi standards
Mimosa SRS, WiFi Interop
Transmission speed - 5GHz [Mb/s]
2402
Transmission speed - 6GHz [Mb/s]
2402
Tx power 5GHz [dBm]
24
Tx power 6GHz [dBm]
24
5GHz MIMO
2 x 2
Azimuth beam width (-6dB) [°]
60
Elevation beam width (-6dB) [°]
60
6GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
1
RF connectors
Twist-on port (Mimosa)
Purpose
Outdoor
Antenna gain [dBi]
8
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Gigabit LAN
Yes
PoE type
PoE-In (only)
Max. power consumption [W]
20
Buttons
Reset
Operating temperature [°C]
-40 up to 55
Weight [g]
700
Depth [mm]
67
Width [mm]
113
Height [mm]
178
IPv6 support
Yes
Default IP address
192.168.1.20
Default login and password
Is set by the user at the first startup
