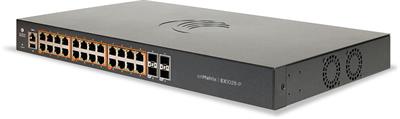

Cambium Networks cnMatrix MX-EX1028PXA-0 PoE Switch

Cambium Networks cnMatrix MX-EX1028PXA-0 PoE Switch
Your price incl. VAT (20.0%)
5,324.64 RON
✅ În stoc 40+ Бр.
Delivery Data de livrare planificată prin curier către dvs 20-11-2024
Cambium Networks
Manufacturer
Product number
MX-EX1028PXA-0
Product Code
RL020.183
Warranty
60 months

Download

https://download.discomp.cz/cambium/Datasheet/cnMatrix_EX1000.pdf
Download Datasheet
https://download.discomp.cz/cambium/QG/cnMatrix-EX1K-Basic-Configuration-Guide-v1.2.pdf
Download Basic Configuration Guide
https://download.discomp.cz/cambium/QG/pmp-2974_000v005-EX1K.pdf
Download Quick Start Guide

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
56
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
120
Web management
Yes
Management
Web management, SSH, Telnet, Cambium cnMaestro cloud
Features
VLAN, DHCP snooping, QoS
Power type
Mains power (230V)
Fans
Yes
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
4
Optical interfaces
(4) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
24
PoE budget [W]
200
Max. power consumption [W]
25
Serial port
RJ45
Chassis design
Metal
USB ports 2.0
1
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
0 up to 50
Width [mm]
440
Height [mm]
44
Depth [mm]
250
