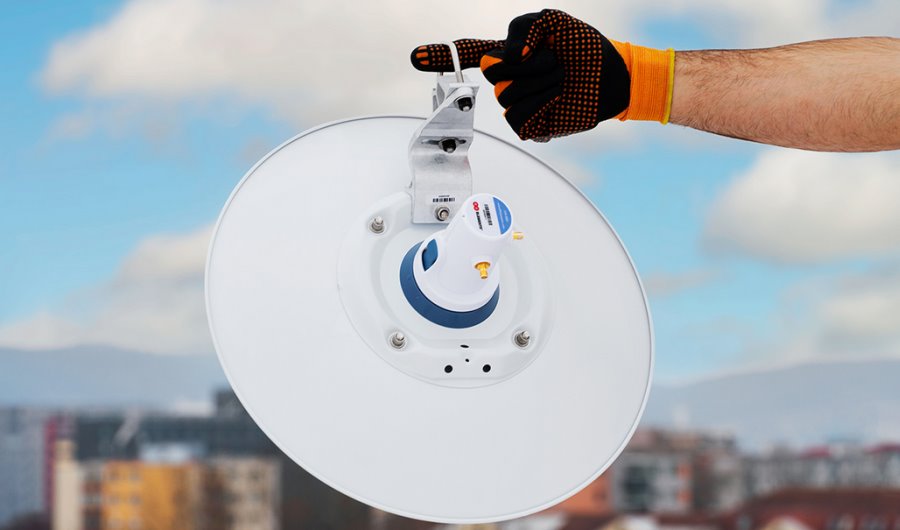

RF elements StarterDish STD-21-UM Directional Parabolic Dish Antenna, 5GHz, 21dBi

RF elements StarterDish STD-21-UM Directional Parabolic Dish Antenna, 5GHz, 21dBi
Your price incl. VAT (20.0%)
196.76 RON
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 27-11-2024
RF elements
Manufacturer
Product number
STD-21-UM
Product Code
RL009.813
Warranty
24 months

Download

https://download.discomp.cz/rfelements/datasheets/Datasheet-STD-21-UM.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Designed for mast diameter [mm]
20 up to 55
Wind load [km/h]
160
Protection class
IP65
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
15
Azimuth beam width (-6dB) [°]
15
Antenna type
Directional
RF connectors
IsoStation port, Twist-on port (Mimosa)
Purpose
Outdoor
Antenna gain [dBi]
21
Operating temperature [°C]
-35 up to 55
Weight [kg]
1,2
Width [mm]
297
Height [mm]
0,5
Depth [mm]
195
