MikroTik Cloud Router Switch CRS354-48G-4S+2Q+RM

MikroTik Cloud Router Switch CRS354-48G-4S+2Q+RM
Your price incl. VAT (20.0%)
2,701.84 RON
✅ In Stock 60+ Бр.
Delivery Planned Delivery Date by Courier to you 03-07-2024
MikroTik
Manufacturer
Product number
CRS354-48G-4S+2Q+RM
Product Code
RL009.307
Warranty
24 months

Product description

If you are looking for a single switch that will put your network setup ahead of the curve without costing a fortune, look no further. The new CRS354-48G-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in demanding and busy environments. With this product we aim to set a new price-performance bar – get more features while spending way less!

High performance

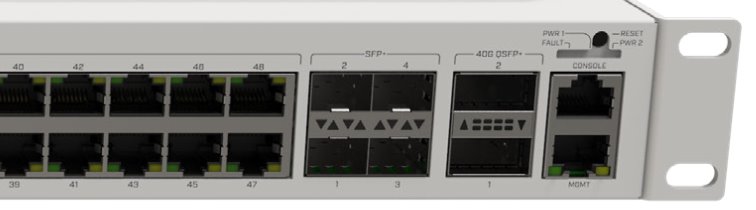

This powerful switch has 48 x 1G RJ45 ports and 4x 10G SFP+ ports. There are also 2x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

MikroTik CRS354-48G-4S+2Q+RM

Redundant power supply

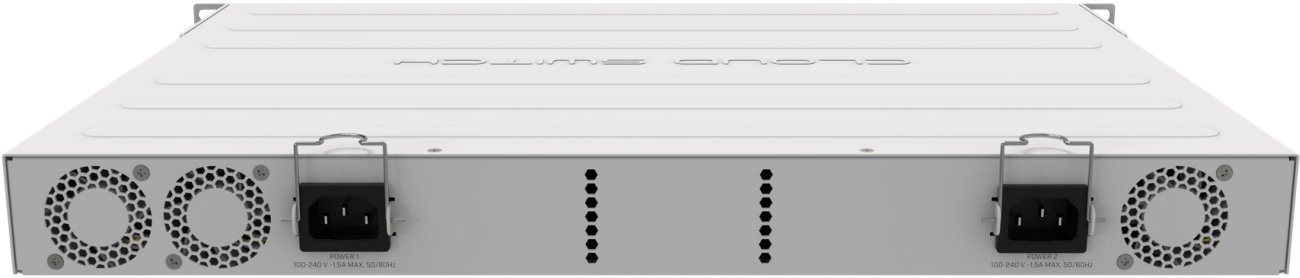

The CRS354-48G-4S+2Q+RM has two integrated redundant power supplies. In the power failure event on the primary power supply, the function may be replaced by a second power supply that is already ready.

MikroTik CRS354-48G-4S+2Q+RM

Package contains

  • Device
  • (2) power cord
  • Rackmount ears
  • Cable management holder

Articles and reviews

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/CE/ID134_CRS354-48G-4Splus2QplusRM_DOC_200159.pdf
Download CE
https://download.discomp.cz/MikroTik/Datasheets/CRS354-48G-4Splus2QplusRM_3_200705.pdf
Download Datasheet
https://help.mikrotik.com/docs/display/QG
Download Quick Guide

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
336
Packet forwarding rate [Mpps]
235
Web management
Yes
Management
Web management
Features
VLAN, QoS, L3, DHCP snooping
Power type
Mains power (230V)
"U" positions
1
Operating system
RouterOS - L5
Fans
(3) 40 x 40 mm
LAN ports
48
LAN speed
(48) 10/100/1000Mbps
Gigabit LAN
Yes
Max. LAN ports speed
1G
Management LAN
(1) 10/100Mbps
SFP+ cages
4
QSFP+ cages
2
Optical interfaces
(4) 10Gbps + (2) 40Gbps
Redundant power supply
Yes
Max. power consumption [W]
60
Serial port
RJ45
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
-20 up to 60
Width [mm]
443
Height [mm]
44
Depth [mm]
297
CPU
QCA9531
CPU frequency [MHz]
650
CPU cores
1
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
64
Default login and password
admin / -
