Solarix ethernet cable CAT6 FTP PE outdoor 500m reel

Solarix ethernet cable CAT6 FTP PE outdoor 500m reel
Your price incl. VAT (20.0%)
1,736.70 RON
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 01-01-2025
Solarix
Manufacturer
Product number
SXKD-6-FTP-PE
Product Code
RL000.903
Warranty
36 months

Product description

The installation cable category 6 labeled SXKD-6-FTP-PE is a high quality cable for horizontal distribution of structured cabling, which easily meets and also exceeds the requirements specified in the international standards ANSI/TIA/EIA 568, ISO/IEC 11801 and EN 50173, including all the latest additions to category 6 Cables. Installation cables Solarix-category 5E are designed for horizontal distribution and are available in shielded and unshielded versions with different types of shells - ie. PVC, LSOH or UV stable PE. The conductors of these cables are made of high quality copper wire size AWG 23. The individual pairs are separated by a plastic cross. Like other cables, also cable SXKD-6-FTP-PE is labeled each one meter in the range of 0-500 m. The cable is supplied on spool, which contains all the necessary product information, including barcodes, production batch, description and main technical parameters (eg. NVP in the form of a QR code).

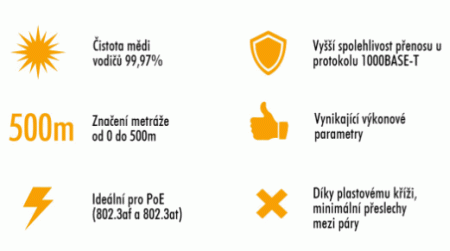

Vlastnosti kabelu Solarix Cat6

Download

https://download.discomp.cz/solarix/datasheets/SXKD-6-FTP-PE.pdf
Download Datasheet

Technical parameters

LAN ports
Category
CAT6
Shielding type
FTP (F/UTP)
Bandwidth [MHz]
250
Installation temperature [°C]
0 up to 50
Storage temperature [°C]
-20 up to 70
Ethernet support
1000 Base-T, 1000 Base-TX
Conductor wire gauge
AWG23
Cable type
Solid
CPR class
Fca
Weight [kg/km]
27
Purpose
Outdoor
Conductor material
Copper
Sheath material
PE
Length [m]
500
Outer diameter [mm)
7,4
Operating temperature [°C]
-20 up to 70
Color
Black
