Ubiquiti UniFi Switch USW-24

Ubiquiti UniFi Switch USW-24
Your price incl. VAT (20.0%)
1,192.67 RON
✅ In Stock 90+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
Ubiquiti Networks
Manufacturer
Product number
USW-24
Product Code
RL009.004
Warranty
24 months

Product description

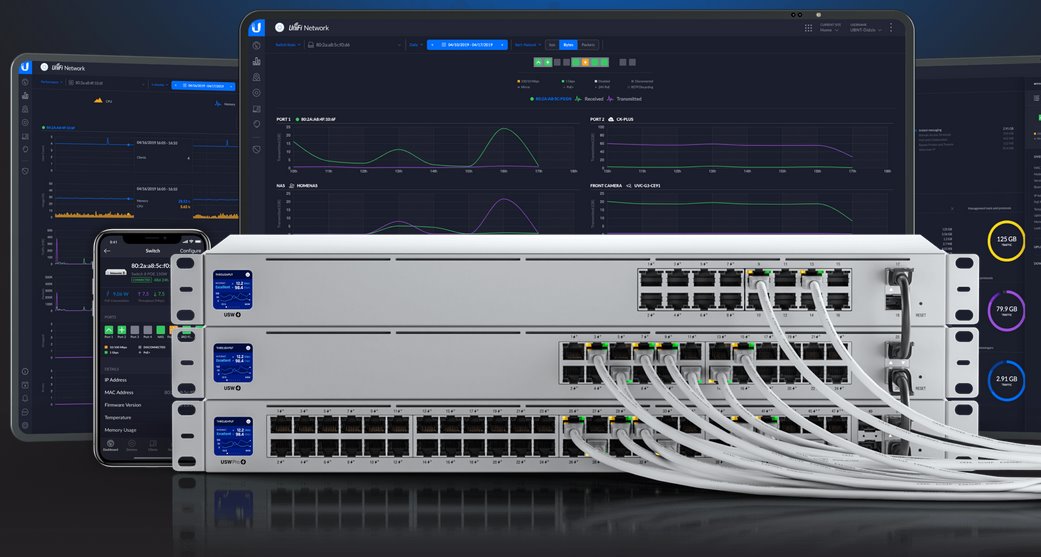

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.

Management via UniFi Controller

Managed and configured by the UniFi Network Controller with UniFi mobile app support, the USW-24-POE offers an extensive suite of advanced Layer 2 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

UBNT USW-24

Touchscreen display

On the touch screen, you can immediately see the most important information such as error conditions, warnings, port statistics, power consumption of connected devices, network load and more.

Package contains

  • Device
  • Power adapter
  • Rackmount ears

Download

https://dl.ubnt.com/qsg/USW-24/USW-24_EN.html
Download Quick Guide
https://download.discomp.cz/ubiquiti/datasheets/usw-24_ds.pdf
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
52
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
39
Management
UniFi Network
Features
VLAN, DHCP snooping
Power type
Mains power (230V)
Fans
No
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
SFP cages
2
Optical interfaces
(2) 1000Mbps
Max. power consumption [W]
25
Chassis design
Metal
Power via connector/terminal
230V AC
Operating temperature [°C]
-5 up to 45
Width [mm]
442
Height [mm]
44
Depth [mm]
200
Default IP address
Dynamic from DHCP, 192.168.1.20
Default login and password
ubnt / ubnt
Other features
Touchscreen
