Teltonika RUTXR1 Enterprise rack-mountable SFP/LTE router
Your price incl. VAT (20.0%)
1,457.11 RON
✅ In Stock 50+ Бр.
Planned Delivery Date by Courier to you 04-12-2024
Product description

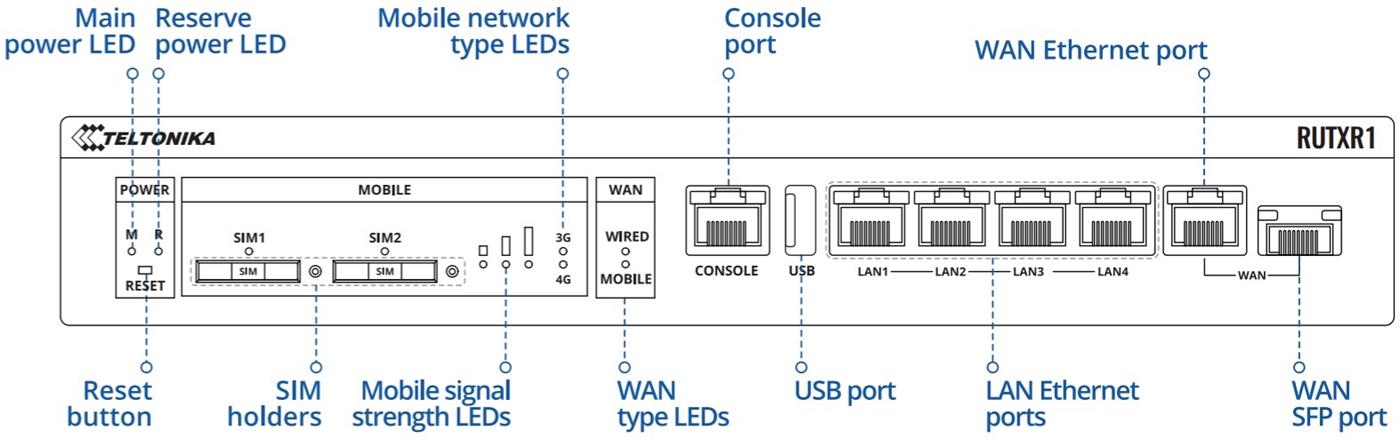

RUTXR1 is a rack-mountable LTE Advanced (LTE-A) router equipped with 5x Gigabit Ethernet ports, WiFi, Dual-SIM, USB port, Console port, redundant power supplies, SFP port and RutOS software for advanced networking solutions.
There is the WAN SFP port for optical connection. Additional peripherals or storage can be connected using the USB 2.0 port. The CPU Quad Core ARM Cortex A7 with the clock rate of 717MHz and 256MB DDR3 RAM ensure smooth operation. Power is provided by 12V power adapter. However, it is possible to connect two sources to the device, with the second being intended as a backup in the event of blackout.
Package contents
- Device
- 2 x LTE antennas (magnetic mount, SMA male, 3 m cable)
- 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- Rack mounting kit
- 4 x Standing pads
- 8 x Screws
- SIM needle
- 18W Euro PSU
- Ethernet cable (1.5 m)
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
Wireless frequency
2.4 + 5 GHz (dual band)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 2.4GHz [Mb/s]
300
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
RF connectors
(2) SMA male + (2) RP-SMA male
Power type
DC connector
Operating system
RutOS (OpenWrt based Linux OS)
LAN ports
4
LAN speed
(4) 10/100/1000Mbps + (1) 10/100/1000Mbps WAN
SFP cages
1
Optical interfaces
(1) 1000Mbps
Max. power consumption [W]
18
Power via connector/terminal
9 .. 50V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 70
Weight [g]
1050
Width [mm]
272
Height [mm]
43
Depth [mm]
123
CPU
Quad-core ARM Cortex A7
CPU frequency [MHz]
717
SIM slot
Yes
SIM slots quantity
2
USB
Yes
Default IP address
192.168.1.1
Internal storage [MB]
256
RAM [MB]
256
Default login and password
admin / admin01
