Hikvision AX PRO Wireless PIR-Camera detector, 12m
Planned Delivery Date by Courier to you 03-07-2024
Product description
DS-PDPC12P-EG2-WE is a wireless PIR detector with an integrated camera from the AX PRO series from Hikvision. The range of the PIR detector is at a distance of to 12 m with an angle of 85.9°. The camera has an angle of view of 88°, IR illumination up to a distance of 12 m and a camera resolution of 160 × 120 px, 320 × 240 px or 640 × 480 px. The detector communicates wirelessly in two-way communication with the control panel at a frequency of 868 MHz with AES-128 encryption, up to a distance of 800 m in open space. The detector is powered by 3× CR123A batteries with up to 6 years.
Important features
- Compatible with AX PRO only
- 868 MHz bidirectional communication, Tri-X communication protocol
- PIR detection: 12 m/85.9°
- Immunity of an animal up to 30 kg
- Light filter: 6 500 lux
- SEC - Special technology using advanced signal processing and 3D optics to increase detection reliability
- Installation height: 1.8 to 2.4 m
- 52 detection zones
- Camera resolution: 160 × 120 px / 320 × 240 px / 640 × 480 px
- IR illumination: 12 m
- Camera angle (H/V): 88°/68°
- Signal range up to 800 m in open space
- Tamper-proof front and back panel

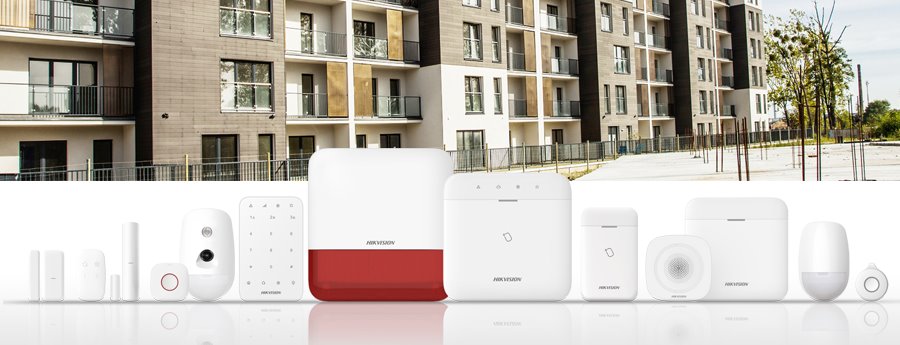

AX PRO alarm system
AX PRO is an innovative wireless security system from the renowned manufacturer Hikvision. It is a variable alarm system that includes a large number of detectors and sensors and can be used in virtually any situation. It has an unprecedented range of wireless connection (up to 2 km) and can cover really large and rugged spaces. The devices are compatible with the new Hik-ProConnect application and can communicate with other Hikvision devices. The entire system can be managed remotely via the cloud, giving installers the ability to provide customer support without the need to travel to the site.
