Mimosa N5-360, 2x 2x2 MIMO 180° sector antenna, 15dBi, 4x N female

Mimosa N5-360, 2x 2x2 MIMO 180° sector antenna, 15dBi, 4x N female
Your price incl. VAT (20.0%)
1,447.82 RON
✅ In Stock < 10 Бр.
Delivery Planned Delivery Date by Courier to you 20-11-2024
Mimosa
Manufacturer
Product number
100-00075(N5-360)
Product Code
RL007.353
Warranty
24 months

Product description

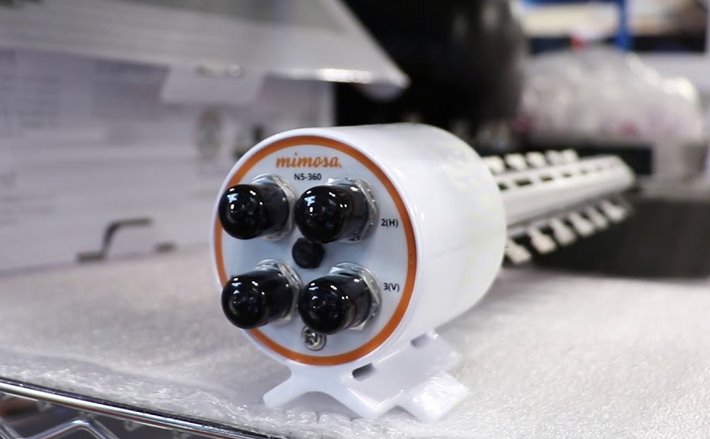

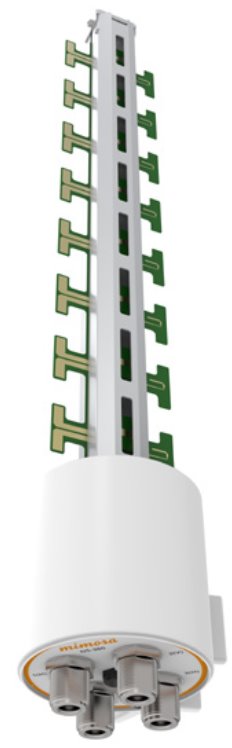

Introducing the industry’s first 4-port, beamforming, 360o antenna specifically designed exclusively for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180° overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360o of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.

Mimosa N5-360 Mimosa N5-360

Package contains

  • Antenna
  • (2) Metal ring
  • (4) pigtail N-male - N-male

Download

https://download.discomp.cz/mimosa/datasheet/N5-360.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2
Polarization
VH
Cross-Pol Isolation [dB]
25
Wind load [km/h]
160
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
8
Azimuth beam width (-6dB) [°]
360
Antenna type
Omnidirectional
RF connectors
(4) N female
Purpose
Outdoor
Antenna gain [dBi]
15
Weight [kg]
1,1
Width [mm]
80
Height [mm]
492
Depth [mm]
80
