Ubiquiti UBB, UniFi Building Bridge
Your price incl. VAT (20.0%)
2,590.50 RON
Ordered for stock
No confirmed delivery date
Product description

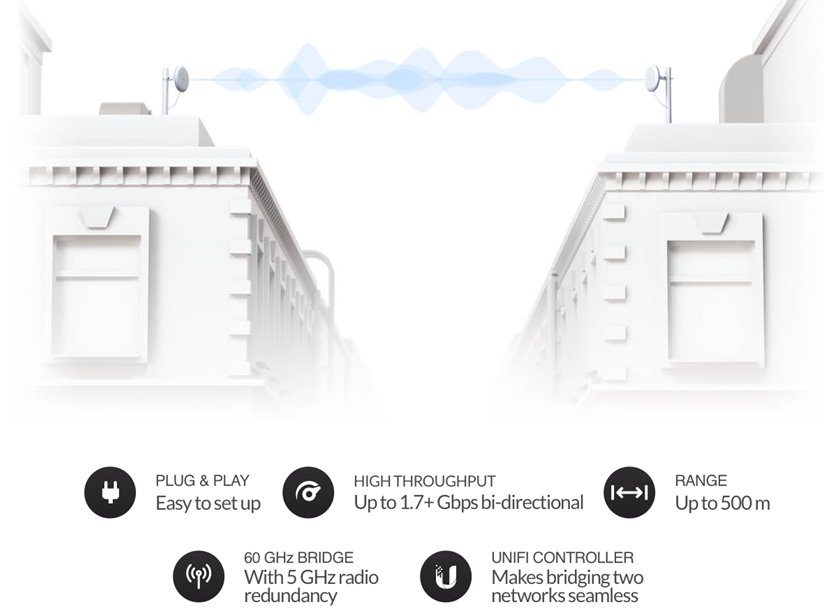

UniFi Building Bridge is a 60GHz point-to-point wireless link with a 5GHz redundancy to extend your network to neighboring building. UBB has throughput is 1.7Gbps+ with a maximum 500m distance and managed or monitored via the UniFi Controller.

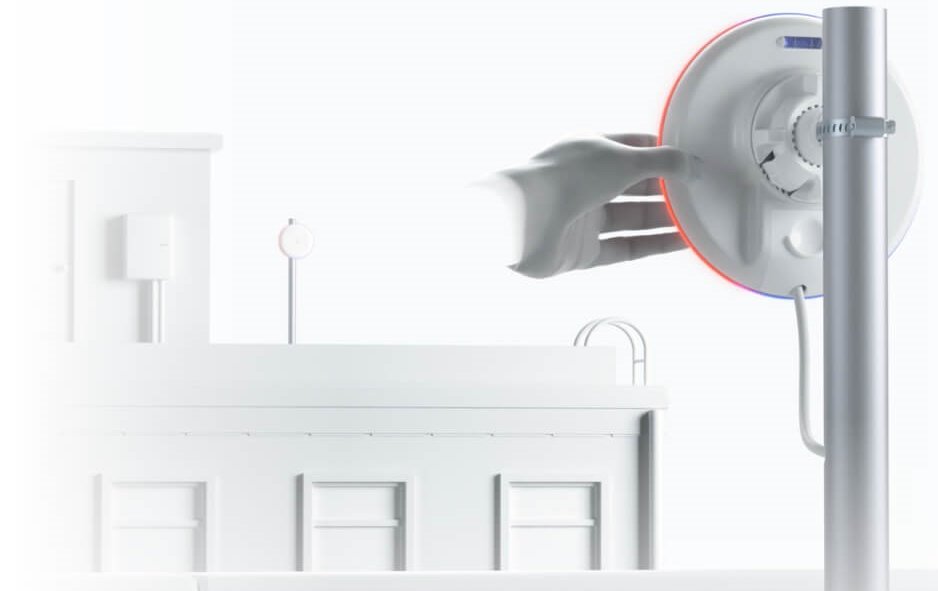

Easily adjust for best signal using LED
The UBB has an integrated LED illumination on the sides that indicates which direction the unit needs to be rotated to get a better signal.
Package contains
- (2) Device
- (2) Ball joint mount + lock ring on mast
- (2) Gigabit PoE power adapter 48V/0.32A
- (2) Power cord
- (2) Metal strap
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af, 48V DC
Transmission speed - 5GHz [Mb/s]
866
Transmission speed - 60GHz [Mb/s]
1700
Output power 60GHz [dBm]
36,5 (EIRP)
Elevation beam width (-6dB) [°]
30
Azimuth beam width (-6dB) [°]
60
Antenna gain [dBi]
17
Power type
PoE
LAN ports
1
LAN speed
(1) 10/100/1000Mbps
Max. power consumption [W]
11
Operating temperature [°C]
-40 up to 70
Weight [g]
376
Width [mm]
140
Height [mm]
140
Depth [mm]
90
Default IP address
Dynamic from DHCP
Default login and password
ubnt / ubnt
GPS modul
Yes
Other features
Bluetooth
