MikroTik Cloud Router Switch CRS354-48P-4S+2Q+RM

MikroTik Cloud Router Switch CRS354-48P-4S+2Q+RM
Your price incl. VAT (20.0%)
4,449.72 RON
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
MikroTik
Manufacturer
MikroTik
Product number
CRS354-48P-4S+2Q+RM
Product Code
RL007.248
Warranty
24 months

Having a question?
Masterlan patch cable UTP, Cat5e, 1m, yellow
Masterlan patch cable UTP, Cat5e, 1m, yellowPCU5E-1YW-MS
1.77 RON excl. VAT
Add to Cart
Gembird Power cord 230V, 1,8m, angled
Gembird Power cord 230V, 1,8m, angledPC-186A-VDE
17.60 RON excl. VAT
Add to Cart
Masterlan comfort patch cable UTP, Cat5e, 5m, gray
Masterlan comfort patch cable UTP, Cat5e, 5m, grayPCU5E-5-MSC
10.06 RON excl. VAT
Add to Cart
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDM
MaxLink 10G SFP+ optical module, MM, 850nm, 300m, 2x LC connector, DDMML-S+85D-03
31.35 RON excl. VAT
Add to Cart
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDM
MaxLink 10G SFP+ optical module, SM, 1310nm, 10km, 2x LC connector, DDMML-S+31D-10
49.35 RON excl. VAT
Add to Cart
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDM
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
65.96 RON excl. VAT
Add to Cart
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDM
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
65.96 RON excl. VAT
Add to Cart
MikroTik Open Frame 750W PSU for CRS354-48P-4S+2Q+RM
MikroTik Open Frame 750W PSU for CRS354-48P-4S+2Q+RMG1270
954.84 RON excl. VAT
Add to Cart

Product description

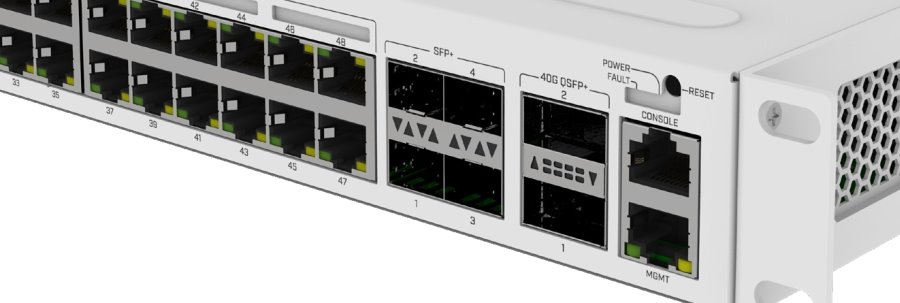

MikroTik Cloud Router Switch CRS354-48P-4S+2Q+RM is very powerfull switch with 2x QSFP+, 4x SFP+, 48x Gigabit and one 10/100Mbps metalic port only for management. Switch provides total throughput 168 Gbps and switching capacity 336 Gbps with 235 Mpps forwarding rate for most conventional packets.

MikroTik CRS354-48P-4S+2Q+RM

48 PoE Out ports for cameras and wireless radios

The switch has an integrated 800W power supply capable of delivering 700W total power to PoE ports. Each copper port supports PoE 802.3af/at or passive 26 and 53V DC with a power limit set at 30W at 52V or 26W at 26V.

Package contains

  • Device
  • Power cord
  • Rackmount ears
  • Cable management

Articles and reviews

DHCP Snooping setupSFP compatibility list

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/CE/CRS354-48P-4S2QRM_DOC_210749.pdf
Download CE
https://download.discomp.cz/MikroTik/Datasheets/CRS354-48P-4Splus2QplusRM_200230.pdf
Download Datasheet
https://help.mikrotik.com/docs/display/QG
Download Quick Guide

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
336
Packet forwarding rate [Mpps]
235
Web management
Yes
Management
Web management
Features
VLAN, QoS, L3, DHCP snooping
Power type
Mains power (230V)
"U" positions
1
Operating system
RouterOS - L5
Fans
Yes
LAN ports
48
LAN speed
(48) 10/100/1000Mbps
Gigabit LAN
Yes
Max. LAN ports speed
1G
Management LAN
(1) 10/100Mbps
PoE type
PoE-Out (only)
SFP+ cages
4
QSFP+ cages
2
Optical interfaces
(4) 10Gbps + (2) 40Gbps
PoE-Out standards
802.3af, 802.3at, Passive 24V, Passive 48V
PoE Out ports
48
PoE budget [W]
750
Max. power consumption [W]
800
Serial port
RJ45
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
-20 up to 60
Width [mm]
443
Height [mm]
44
Depth [mm]
297
CPU
QCA9531
CPU frequency [MHz]
650
CPU cores
1
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
64
Default login and password
admin / -
