Turris MOX F Module - USB (boxed version)
Your price incl. VAT (20.0%)
341.00 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 01-01-2025
Product description

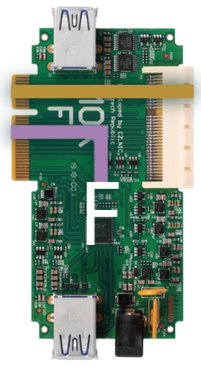

The F module expands your configuration with more USB 3.0 ports with transfer speeds of up to 5 Gbps that you can use to connect external drives, TV tuners and other devices.
Compatibility
There can be only one MOX F module in the configuration; the PCIe bus is terminated there. For this reason, MOX F cannot be combined with MOX B.
This module can be used only as an extension in a set. You will need at least MOX Start. MOX B is included in the MOX Power Wi-Fi and MOX Classic sets. If you’re combining it with other modules, make sure they are compatible. You can verify the order of modules and pass-through of PCIe and SGMII signals in the configurator on mox-configurator.turris.cz.
Package contains
- Turris MOX F module
- Plastic box
Download
Technical parameters
LAN ports
USB ports 3.0
4
Operating temperature [°C]
0 up to 40
Weight [g]
94
Width [mm]
114
Height [mm]
45
Depth [mm]
61
