Ubiquiti UniFi Switch USW-Pro-24-POE Gen2

Ubiquiti UniFi Switch USW-Pro-24-POE Gen2
Your price incl. VAT (20.0%)
3,592.37 RON
❌ The item is not available. There is no option to order.
Delivery No confirmed delivery date
Ubiquiti Networks
Manufacturer
Product number
USW-Pro-24-POE
Product Code
RL006.755
Warranty
24 months

Product description

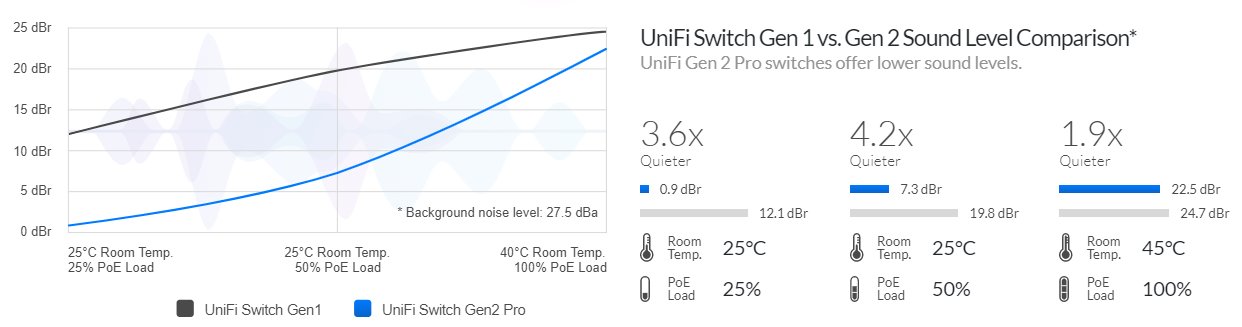

The second generation UniFi switches bring many changes and improvements, the switches have been redesigned from the ground up. Compared to the first generation, there is a significant improvement in airflow, which is used for cooling, making it up to 4x quieter* than the first generation.
* at an ambient temperature of 25° and a 25% POE load, the switch is 3.6 times quieter
* at an ambient temperature of 25° and a 50% POE load, the switch is 4.2 times quieter
* at an ambient temperature of 25° and a 100% POE load, the switch is 1.9 times quieter

USW-Pro-24-POE

Equipment

USW-Pro-24-POE Gen2 has a total of 24 POE-Out ports. 1-16 ports support 802.3af/at standards, 17-24 ports support 802.3bt (60W) standards. The total POE budget is 400W (total power of 450W, 50W switch power consumption).

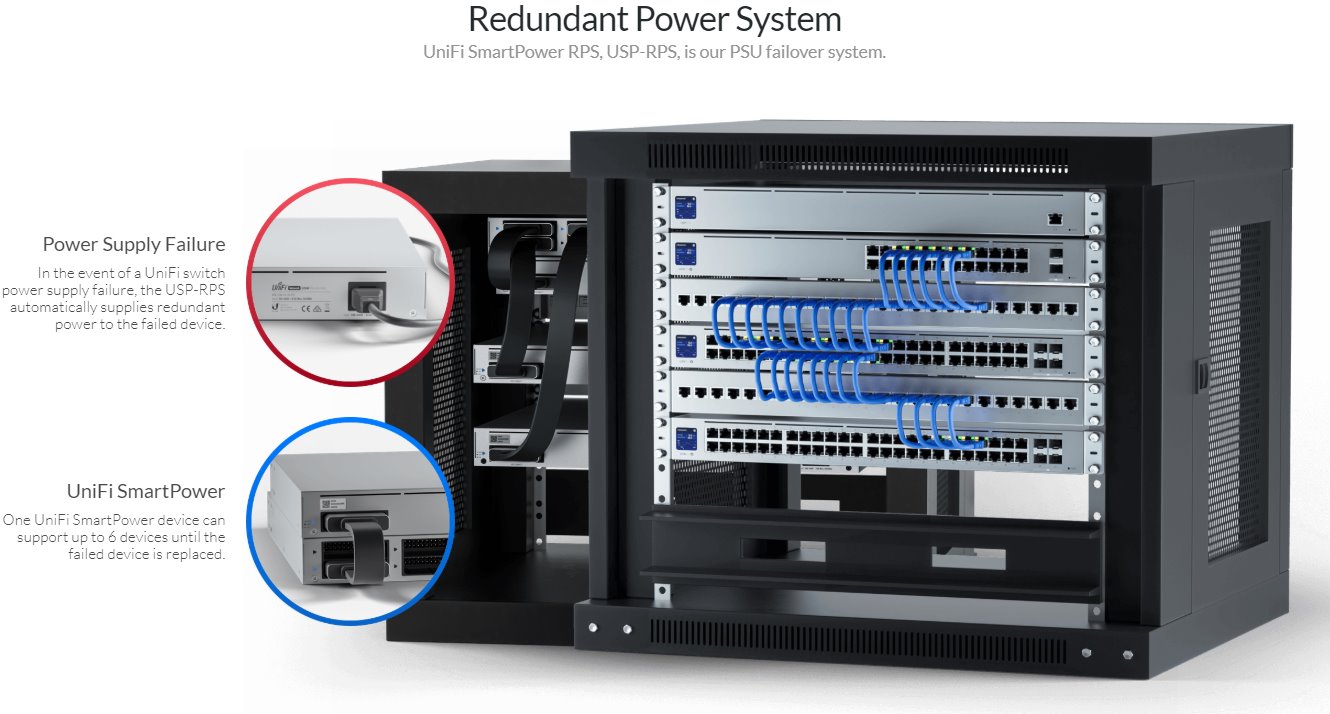

The pair of 10G SFP + ports with 1G SFP backward compatibility will serve as the Uplink. In case of power failure, the switch can be connected to the UniFi SmartPower backup system, which can handle up to 6 supported devices.

USW-Pro-24-POE

LCD display

The LCD touchscreen instantly shows the most important informations like error conditions, warnings, port statistics, connected device consumption, network usage, and more.

L3 features

In the future firmware version, L3 switch functionality is planned.

Package contains

  • Device
  • Power cord
  • Rackmount ears

Download

https://dl.ubnt.com/ds/usw_pro_poe_ds
Download Datasheet

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
88
MAC address table
16000
Jumbo frame [Bytes]
9000
Packet forwarding rate [Mpps]
65,48
Management
UniFi Network
Features
VLAN, DHCP snooping
Power type
Mains power (230V), UniFi SmartPower RPS
Fans
Yes
LAN ports
24
LAN speed
(24) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP+ cages
2 (1G/10G support)
Optical interfaces
(2) 1G/10Gbps
PoE-Out standards
802.3af, 802.3at, 802.3bt
Redundant power supply
Yes
PoE Out ports
24
PoE budget [W]
400
Max. power consumption [W]
50
Chassis design
Metal
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
-5 up to 40
Width [mm]
442
Height [mm]
44
Depth [mm]
285
Default IP address
192.168.1.20, Dynamic from DHCP
Default login and password
ubnt / ubnt
Other features
Touchscreen
