Ubiquiti EP-24V-72W, EdgePower, 24V, 72W
Your price incl. VAT (20.0%)
860.72 RON
Ordered for stock
No confirmed delivery date
6.95 RON excl. VAT
2.22 RON excl. VAT
2.22 RON excl. VAT
Product description

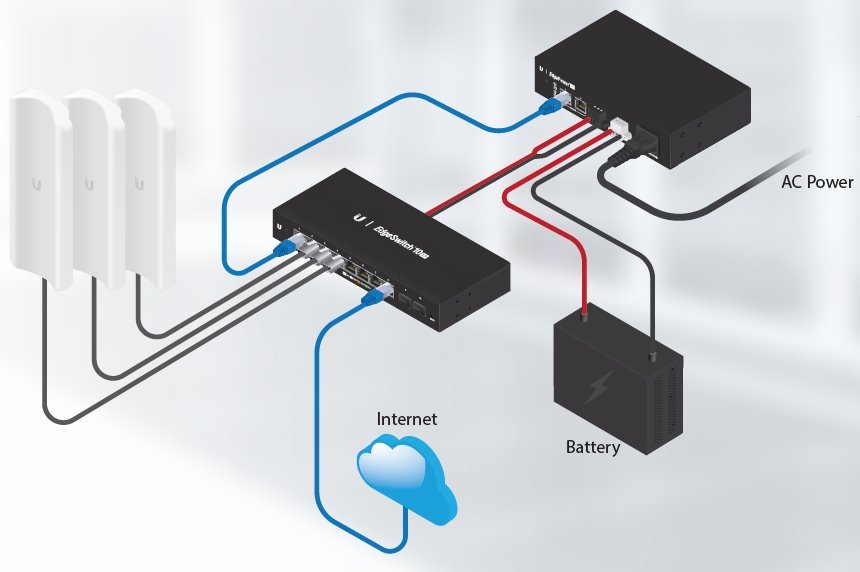

The EdgePower 24V 72W is a UNMS monitored and managed 24V DC power supply with integrated battery backup. This product provides WISPs with an easy-to-install 24V redundant power supply that includes a management user interface and simple 12V battery backup charger with multiple 24V outputs for small sites.
key properties
- 100-240VAC, 50-60 Hz, Universal Input
- 24V DC Output (terminal connector with dual DC barrel jack included)
- 12V Lead Acid Battery Input*
- Two, 10/100 Ethernet, 24V Passive PoE output, switch-ports
*12V Battery not included
Package contains
- Device
- Power cord
- Mount brackets
- Screws and Anchors
- Powe cable with DC jack
- Power cable with Ring Terminals
Download
Technical parameters
LAN ports
Max. operating humidity [%]
90
Pin powering
4,5 (+), 7,8 (-)
Web management
Yes
Charging function
Yes
Construction
Rackmount
LAN ports
2
Input and output power
Terminal block
LAN speed
(2) 10/100Mbps
PoE-Out standards
Passive 24V
Power [W]
72
Redundant power supply
Yes
PoE Out ports
2
Output Voltage [V]
24
PoE budget [W]
72
Output Current [A]
3
Max. power consumption [W]
2
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
0 up to 40
Weight [g]
650
Width [mm]
192
Height [mm]
44
Depth [mm]
115
