RF elements Symmetrical Horn Antenna Carrier Class, 5GHz, 18dBi, 30°, Gen2
Planned Delivery Date by Courier to you 01-01-2025
Product description

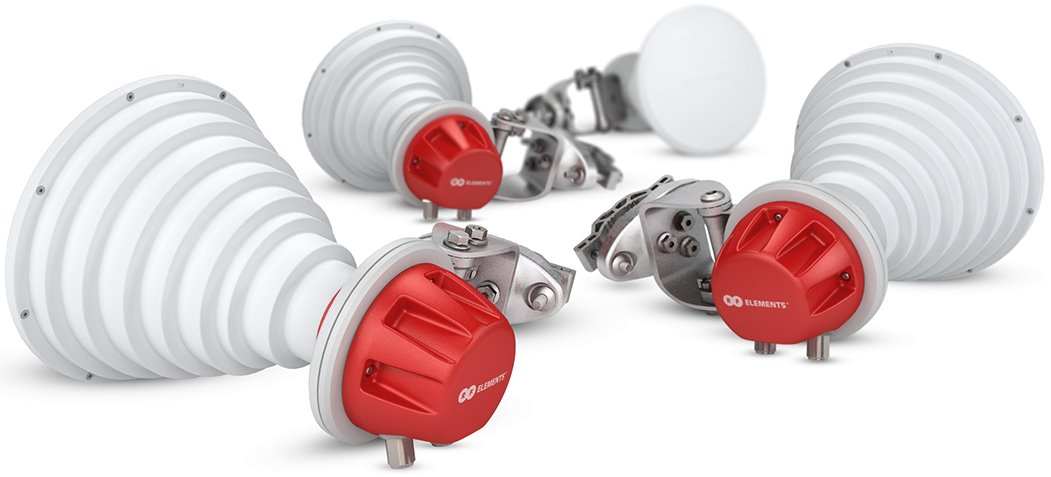

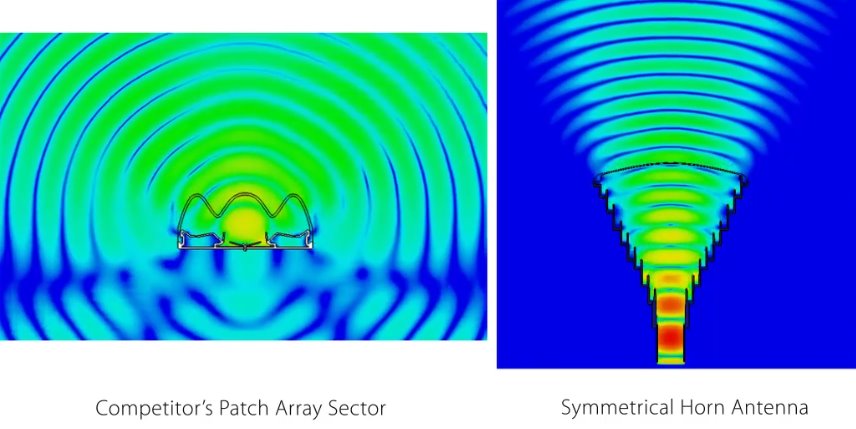

Symmetrical Sectors are low loss scalar horn antennas with unique beam shape and characteristics. Their beam section is circular: azimuth and elevation radiation angles are identical. The beam pattern does not vary with frequency and antenna gain is balanced over a wide frequency range. These features make them excellent for use as Sector antennas. This antenna has 18dBi gain, 30° beam angle and (2) N-female connectors.
Superb Scalability

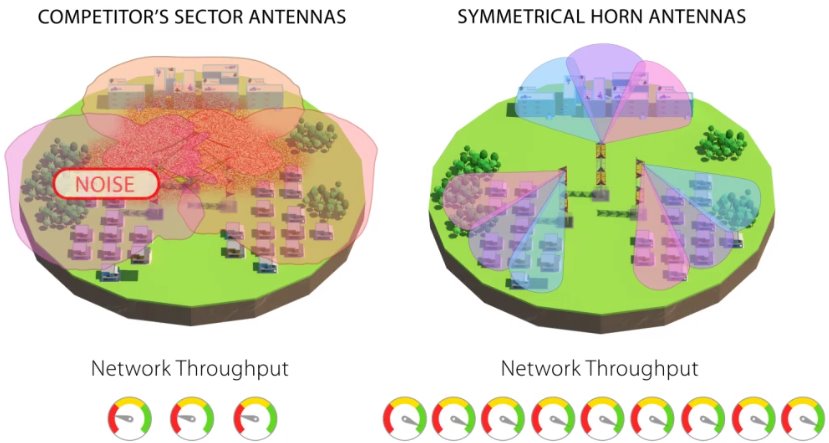

Symmetrical Sectors enable breakthrough scalability of wireless systems that fundamentally re-defines the approach to planning and deployment of wireless networks. We offer wide range of antenna models with exact beam pattern from 30° to 90°. You are no longer forced to compromise your network design with limitations of your current vendor.
Robust and Durable
Symmetrical Sectors are solid metal structures - they are built to last. We use the best available materials: die cast, stamped and extruded aluminium, high quality ABS plastic and stainless steel hardware.
Compact

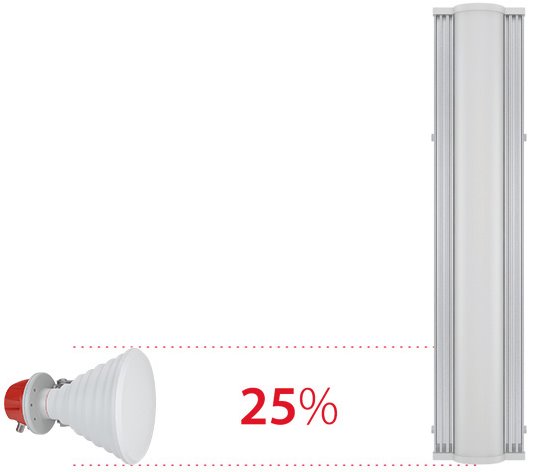

Symmetrical Sector antennas are very compact. They only have 20 - 25% footprint of traditional Sector antennas. Compact size saves tower rental fees and makes them easy to install on places where mainstream Sectors would not be allowed due to their shape and size.
Package contains
- Antenna
- Holder
- Screws
