MikroTik Cloud Router Switch CRS326-24S+2Q+RM

MikroTik Cloud Router Switch CRS326-24S+2Q+RM
Your price incl. VAT (20.0%)
2,667.35 RON
✅ In Stock 20+ Бр.
Delivery Planned Delivery Date by Courier to you 04-12-2024
MikroTik
Manufacturer
Product number
CRS326-24S+2Q+RM
Product Code
RL006.502
Warranty
24 months

Product description

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is our first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

High performance

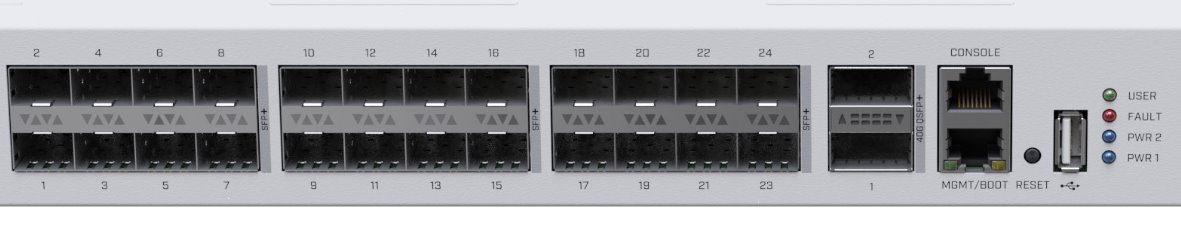

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

MikroTik CRS326-24S+2Q+RM

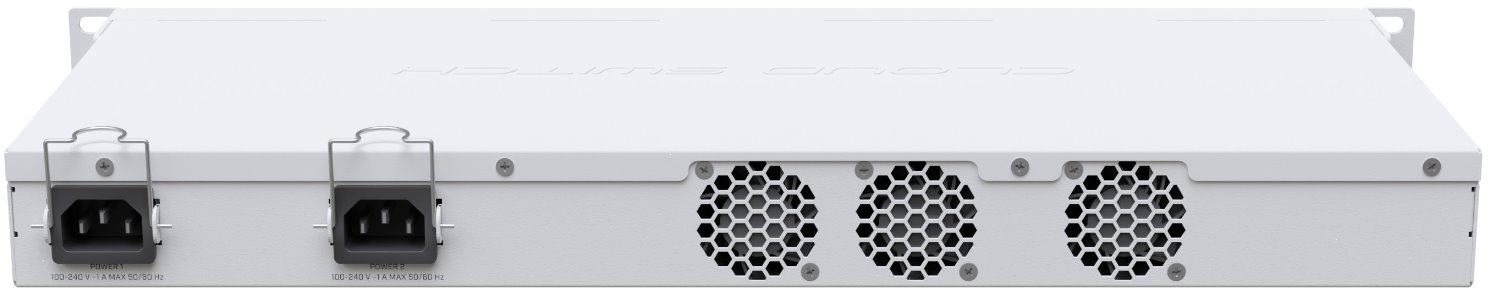

Redundant power supply

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

MikroTik CRS326-24S+2Q+RM

Dual OS

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS.

Package contains

  • Device
  • (2) Power cord
  • Rackmount ears

Articles and reviews

Download

http://www.mikrotik.com/download
Download Firmware (RouterOS / SwOS)
https://download.discomp.cz/MikroTik/CE/ID086_CRS326-24Splus2QplusRM_DOC_190857.pdf
Download CE
https://download.discomp.cz/MikroTik/Datasheets/CRS326-24Splus2QplusRM_200112.pdf
Download Datasheet
https://help.mikrotik.com/docs/display/QG
Download Quick Guide
https://wiki.mikrotik.com/wiki/SwOS
Download SwOS manual

Technical parameters

LAN ports
Design
Rackmount
Switchning capacity [Gbps]
640
Packet forwarding rate [Mpps]
252
Web management
Yes
Management
Web management
Features
VLAN, DHCP snooping
Power type
Mains power (230V)
"U" positions
1
Operating system
RouterOS - L5, SwOS
Fans
Yes
LAN ports
1
LAN speed
(1) 10/100Mbps
Max. LAN ports speed
100M
SFP+ cages
24
QSFP+ cages
2
Optical interfaces
(24) 10Gbps + (2) 40Gbps
Max. power consumption [W]
69
Serial port
RJ45
Chassis design
Metal
USB ports 2.0
1
Power via connector/terminal
230V AC
Buttons
Reset
Operating temperature [°C]
-20 up to 60
Width [mm]
443
Height [mm]
44
Depth [mm]
183
CPU
QCA9531
CPU frequency [MHz]
650
CPU cores
1
USB
Yes
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
16
RAM [MB]
64
Default login and password
admin / -
