Ubiquiti UF-WiFi - UFiber WiFi
Your price incl. VAT (20.0%)
368.27 RON
✅ In Stock 90+ Бр.
Planned Delivery Date by Courier to you 20-11-2024
Masterlan fiber optic patch cord, SCapc-SCapc, Singlemode 9/125, simplex, 1mSCapc/SCapc-SSM.9/125-01
6.90 RON excl. VAT
Product description
Sporting a sleek industrial design, the UFiber WiFi is a robust, high-performance GPON CPE that features an informational LED display with 4 Ethernet ports and WiFi. *Router function will be supported in future firmware.
Versatile Power

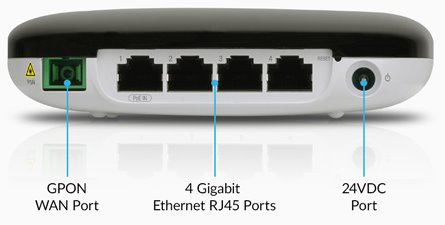

The 4 Ethernet LAN ports support 10/100/1000 Mbps connections. The UFiber WiFi can be powered using 24V passive PoE on Port 1, or by 24VDC.
Designed for Integration

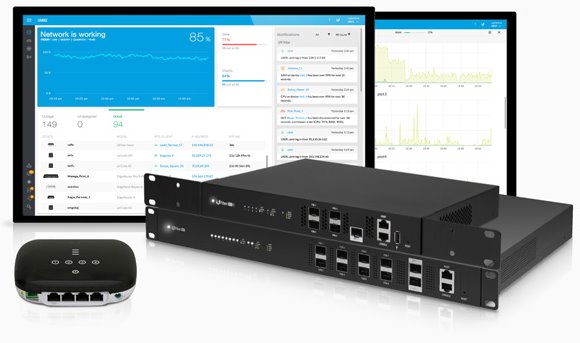

Up to 128 UFiber WiFi devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the UFiber WiFi integrates with the UFiber OLT and third-party OLT devices.
Package contains
- Device
- Power adapter 24V/0.5A
- Screws
Download
Technical parameters
LAN ports
Power over Ethernet
24V DC
Tx power [dBm]
1.5 up to 5
Transmission speed - 2.4GHz [Mb/s]
300
Optical Connectors
(1) SC
2.4GHz MIMO
2 x 2
Type of antenna
Built-in
Internal antennas
2
Transmission speed
2.488 / 1.244 Gbps
Transfer type
GPON
Polishing type
APC
LAN ports
4
LAN speed
(4) 10/100/1000Mbps
Gigabit LAN
Yes
Receiver sensitivity [dBm]
-8 up to -28
Max. power consumption [W]
7
Power via connector/terminal
20 .. 28V DC
Buttons
Reset
Operating temperature [°C]
-10 up to 45
Weight [g]
190
Width [mm]
126
Height [mm]
32
Depth [mm]
126
Default IP address
192.168.1.1
Default login and password
ubnt / ubnt
