Mimosa N5-45x2, sector slant antenna 45°, 19dBi, 2x N female

Mimosa N5-45x2, sector slant antenna 45°, 19dBi, 2x N female
Your price incl. VAT (20.0%)
1,027.97 RON
✅ In Stock 10+ Бр.
Delivery Planned Delivery Date by Courier to you 27-11-2024
Mimosa
Manufacturer
Product number
100-00083(N5-45x2)
Product Code
RL005.995
Warranty
24 months

Product description

The Mimosa N5-45 antennas, deliver all the gain and ground coverage of a sector antenna, with the amazing front-to-back and sidelobe performance of a horn. These 4.9-6.4 GHz, 45-degree sector antennas are custom-engineered for a variety of multipoint applications. All the beamforming gain and ground coverage of a sector. All the sidelobe rejection of a horn.

No Sidelobes

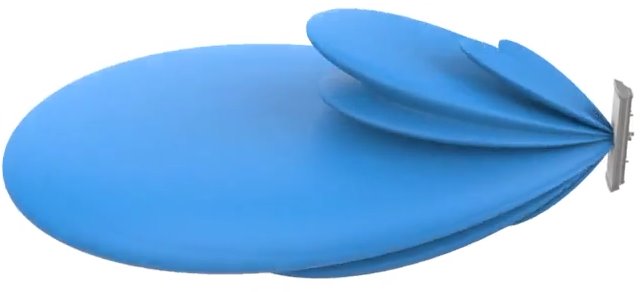

Using state-of-the-art RF design, the N5-45 antennas are custom-engineered to deliver a high-gain, 42o half-power beamwidth with non-existent side lobes.

Mimosa N5-45x2

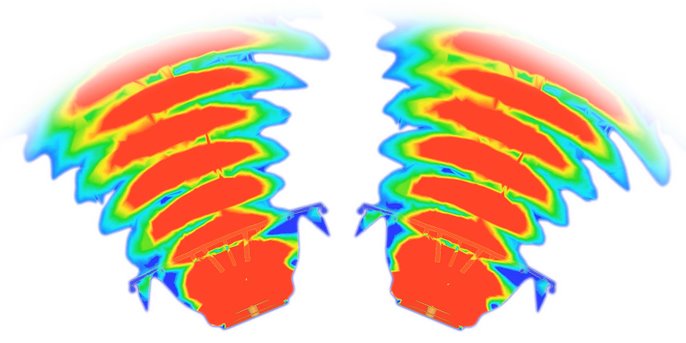

Industry’s Highest Front-to-Back Ratio

With an front-to-back ratio of 43 dB, the N5-45 antennas utilize metalized end-caps and a precision engineered backplate extrusion to improve noise rejection.

Mimosa N5-45x2

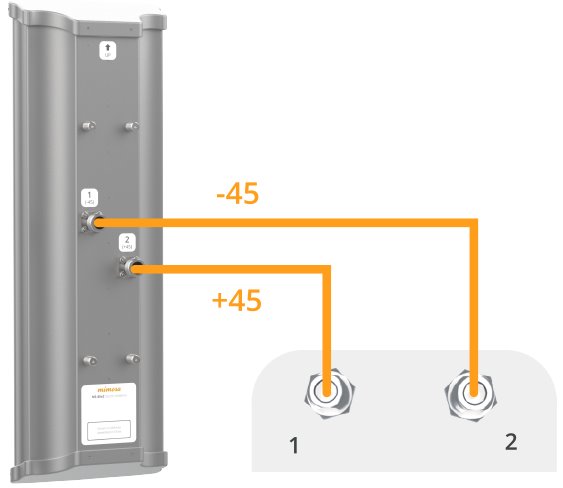

Supports Third-Party Access Points

Improve performance and noise rejection by using the N5-45x2 with any 2x2 access point.

Mimosa N5-45x2

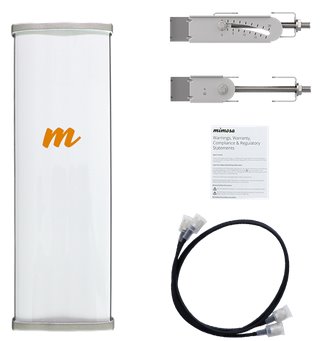

Package contains

  • Device
  • Holder
  • (2) 1m pigtail N-male - N-male
Mimosa N5-45x2

Download

https://download.discomp.cz/Mimosa/Datasheet/N5-45x2.pdf
Download Datasheet

Technical parameters

LAN ports
MIMO, SISO
2 x 2 (slant - 45° turned)
Polarization
VH (slant)
Designed for mast diameter [mm]
38 up to 90
Cross-Pol Isolation [dB]
30
Wind load [km/h]
200
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
9
Azimuth beam width (-6dB) [°]
45
Antenna type
Sector
RF connectors
(2) N female
Purpose
Outdoor
Antenna gain [dBi]
19
Weight [kg]
4,7
Width [mm]
143
Height [mm]
427
Depth [mm]
76
