RF elements directional antenna UltraHorn™ TP 5-24 with TwistPort, 5GHz, 24dBi
Your price incl. VAT (20.0%)
1,949.80 RON
✅ In Stock 20+ Бр.
Planned Delivery Date by Courier to you 20-11-2024
236.15 RON excl. VAT
39.29 RON excl. VAT
Product description

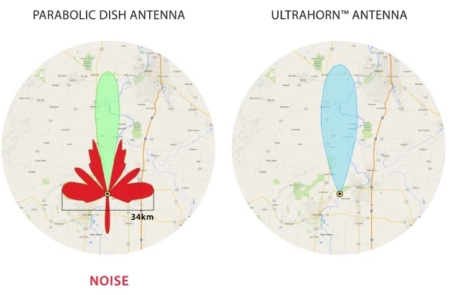

UH-TP-5-24 UltraHorn TP antenna is highly directional (11° beam angle) scalar horn antennas for point-to-point connections in 5GHz band and 24 dBi antenna gain. They offer all the benefits of scalar horns: ultra noise rejection, lossless connection of radio and symmetrical beam with no side lobes. These unique radiation properties make them excellent antennas for long links in environments with a high level of noise.
Zero Loss

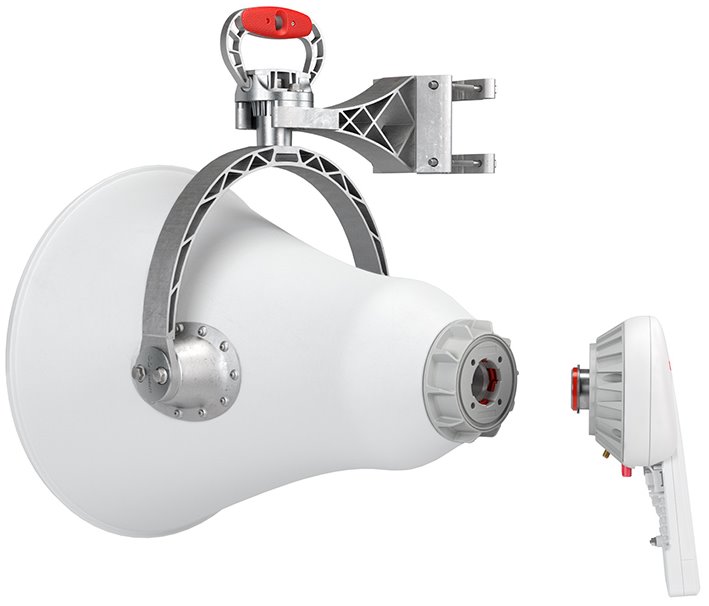

UltraHornTM TP Antennas feature our industry changing TwistPort connector, a patent pending quicklocking waveguide port. There are no coaxial RF connectors or RF cables anymore that makes TwistPortTM virtually lossless connector. Connection of radio is brilliantly simple - “twist and lock” - all done with one hand!
Package contains
- UltraHorn antenna
- Precision holder
Download
Technical parameters
LAN ports
Polarization
VH
Antenna design
Horn
F/B ratio [dB]
40
Designed for mast diameter [mm]
30 up to 80
Wind load [km/h]
160
Wireless frequency
5 GHz
Elevation beam width (-6dB) [°]
11
Azimuth beam width (-6dB) [°]
11
Antenna type
Directional
RF connectors
TwistPort
Purpose
Outdoor
Antenna gain [dBi]
24
Material
Aluminum, Stainless steel, ABS plastic, Polycarbonate, Polypropylene
Width [mm]
572
Height [mm]
635
Depth [mm]
578
