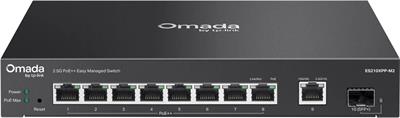

TP-Link ES210XPP-M2, Omada 2.5G PoE switch

Product description

The TP-Link ES210XPP-M2 is an Omada Easy Managed PoE switch with a switching capacity of 80Gbps, (8) 2.5G PoE++ ports, (1) 10G port and (1) SFP+ slot. The PoE ports support 802.3af/at/bt PoE++ with a budget of 200W. It supports management via a local web interface and cloud management.

Key features

• (8) 2.5Gbps PoE++ ports, (1) 10Gbps port and (1) SFP+ slot
• 802.3af/at/bt PoE++ with up to 90W/port and a total budget of 200W
• Centralized cloud management via the web or the Omada app
• Perpetual PoE - ensures uninterrupted power supply to connected PoE devices even during switch restarts or upgrades
• Passive cooling - silent operation, suitable for office environments

Package contents

• Device
• Power adapter 54V/4.16A

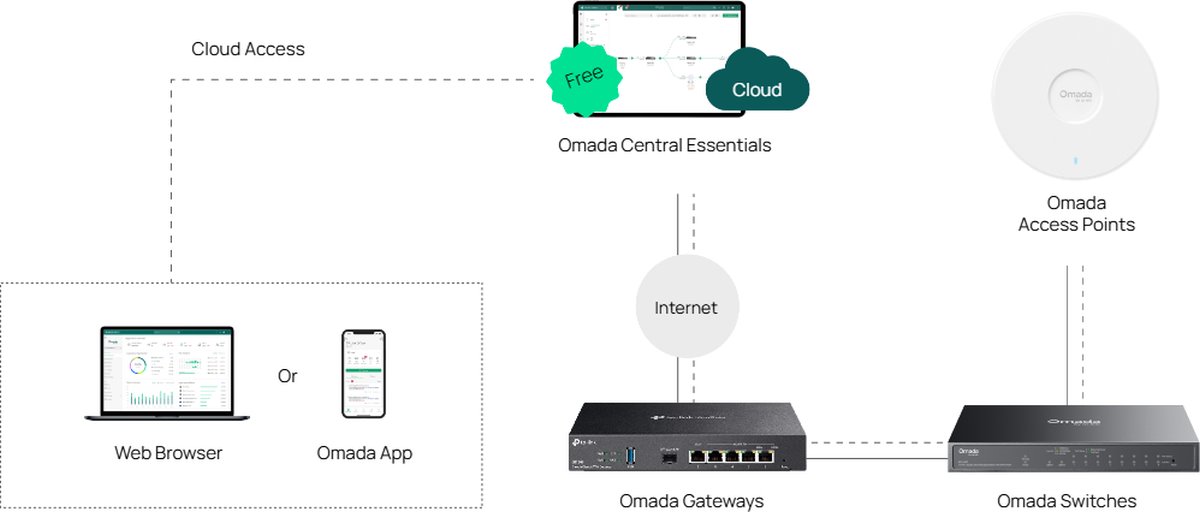

Omada Cloud Management

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

Download

https://download.discomp.cz/TP-LINK/Datasheets/Datasheet_ES210XPP-M2(UN)1.0.pdf

Datasheet

https://download.discomp.cz/TP-LINK/QSG/7100002687_ES206XPP-M2(UN)_Multi-mode_IG%EF%BC%88Omada%20New%20VI%EF%BC%89.pdf

Quick Install Guide
