Tachyon TNA-303L-65-LIB, Preconfigured 60GHz PtP link

Product description

The Tachyon TNA-303L-65-LIB is a preconfigured kit of two 60GHz units for a PtP link. It offers full support for the unlicensed 60GHz band in the 57–71 GHz range. It delivers speeds of up to 1 Gbps in an ultra-compact and cost-effective design, featuring an integrated antenna with a gain of 32 dBi and a beam angle of 8°.

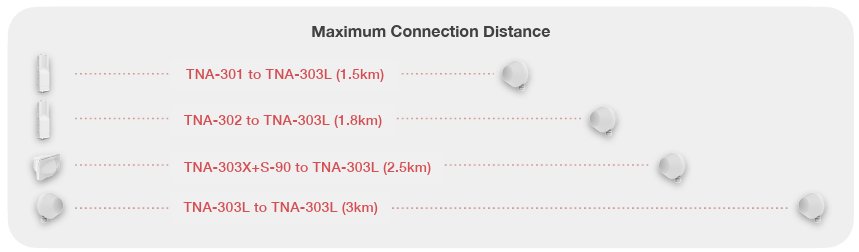

*Distance depends on local country regulations

The TNA-303L-65 unit is equipped with a Gigabit Ethernet port supporting PoE-IN 38–57V, with a maximum power consumption of 15 W. It also features a USB-A port for connecting a 2.4 GHz Wi-Fi adapter, simplifying installation and alignment of the unit.

Key Features

• Compact design
• 60 GHz band support (57–71 GHz)
• Data throughput up to 1 Gbps
• Gigabit Ethernet port and USB-A port for Wi-Fi adapter connection
• PTMP client and PTP operating modes

Package Contents

• (2) Units
• (2) TNA-M-L mounting brackets
• (2) PoE adapters 48V / 0.5A
• Quick installation guide

Download

https://download.discomp.cz/tachyon/datasheets/TNA-303L-65.pdf

Datasheet

https://tachyon-networks.com/calc.html

Link calculator

https://tachyon-networks.freshdesk.com/support/solutions/articles/67000659775-tna-30x-web-ui-manual-v1-10-0-

Web UI manual

https://tachyon-networks.freshdesk.com/support/solutions/articles/67000747395-tna-303l-65-lib-link-in-a-box-operating-manual

Operating manual
