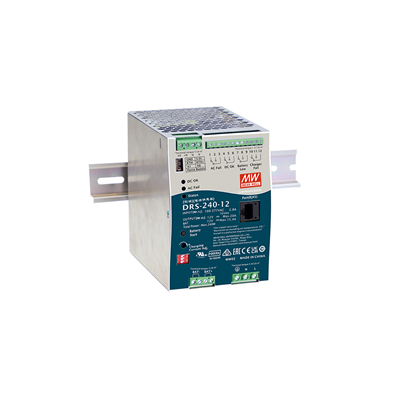

MEAN WELL DRS-240-12, DIN rail power supply, UPS, 12V, 240W
Your price incl. VAT (20.0%)
943.25 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 12-08-2026
You have a choice of 4 variants
5.72 RON excl. VAT
6.75 RON excl. VAT
2.12 RON excl. VAT
2.12 RON excl. VAT
14.79 RON excl. VAT
Product description
The MEAN WELL DRS-240-12 is a DIN rail power supply with UPS function and a battery charger. It offers a 12V DC output, 240W output power, 20A output current, an RJ45 interface for Modbus, 90% efficiency, 90-305V AC input voltage, alarm and status relay outputs (AC Fail, DC OK, Battery Low, Charger Fail) and protection against short circuit, overload, overvoltage, battery reverse polarity and deep discharge. It is designed for installation on TS35/7.5 and TS35/15 DIN rails, where it occupies 85.5mm in width.
Download
Technical parameters
LAN ports
Charging function
Yes
Construction
DIN rail
Input and output power
Terminal block
Power [W]
240
Output Voltage [V]
12
Output Current [A]
20
Operating temperature [°C]
-30 up to 70
Weight [g]
1190
Width [mm]
86
Height [mm]
125
Depth [mm]
129
Efficiency [%]
90
