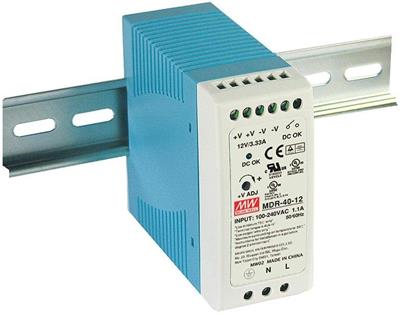

MEAN WELL MDR-40-12, DIN rail power supply, 12V, 40W
Your price incl. VAT (20.0%)
102.05 RON
❌ The item is not available. There is no option to order.
No confirmed delivery date
5.67 RON excl. VAT
6.66 RON excl. VAT
2.12 RON excl. VAT
2.12 RON excl. VAT
Product description
The MEAN WELL MDR-40-12 is a DIN rail power supply with a 12V DC output, adjustable output voltage in the 12-15V range, 40W output power, 3.3A output current, 86% efficiency, 85-264V AC input voltage and protection against short circuit, overload and overvoltage. It is designed for installation on TS35/7.5 and TS35/15 DIN rails, where it occupies 40mm in width.
Download
Technical parameters
LAN ports
Construction
DIN rail
Input and output power
Terminal block
Power [W]
40
Output Voltage [V]
12
Output Current [A]
3,3
Operating temperature [°C]
-20 up to 70
Weight [g]
300
Width [mm]
40
Height [mm]
90
Depth [mm]
100
Efficiency [%]
86
