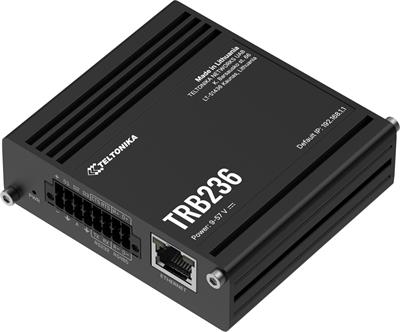

Teltonika TRB236, Industrial 4G IoT gateway
Your price incl. VAT (20.0%)
873.26 RON
Ordered for stock
Planned Delivery Date by Courier to you 17-06-2026
Product description
The Teltonika TRB2360 is an industrial 4G LTE IoT gateway featuring LTE450 support, WAN failover, (1) 10/100Mbps port, (1) RS232 and (1) RS485 serial interfaces, (1) 16-pin I/O terminal block, (1) SMA female connector for an external LTE antenna and (2) mini SIM slots.
The router is equipped with a modem supporting 4G LTE Cat. 4 and 3G, with data rates of up to 150Mbps downlink and 50Mbps uplink. Power can be supplied via the 16-pin terminal block (9-57V).
Package contents
- Device
- SIM adapter kit
- Terminal blocks
- 1.5m patch cable
Download
Technical parameters
LAN ports
Protection class
IP30
Design
Industry
Wireless frequency
LTE, 3G (GSM)
Type of antenna
Detachable
Detachable antennas
1
RF connectors
(1) SMA female
Integrated 4G/LTE radio part
Yes
Power type
DC terminal
4G/LTE bands support
(1) 2100 MHz, (2) 1900 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (31) 450 MHz, (38) 2600 MHz, (4) 1700 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (66) 1700 MHz, (7) 2600 MHz, (8) 900 MHz, (87) 410 MHz, (72) 450 MHz
Operating system
RutOS (OpenWrt based Linux OS)
LAN speed
(1) 10/100Mbps
LAN ports 100M
1
Max. power consumption [W]
5
Serial port
RS-232, RS-485
Power via connector/terminal
9 .. 57V DC
Buttons
Reset
Operating temperature [°C]
-40 up to 75
Weight [g]
175
Width [mm]
83
Height [mm]
25
Depth [mm]
83
CPU frequency [MHz]
580
SIM slots quantity
2
IPv6 support
Yes
Default IP address
192.168.1.1
Internal storage [MB]
16
RAM [MB]
128
Default login and password
admin / (preset password, see label/engraving)
