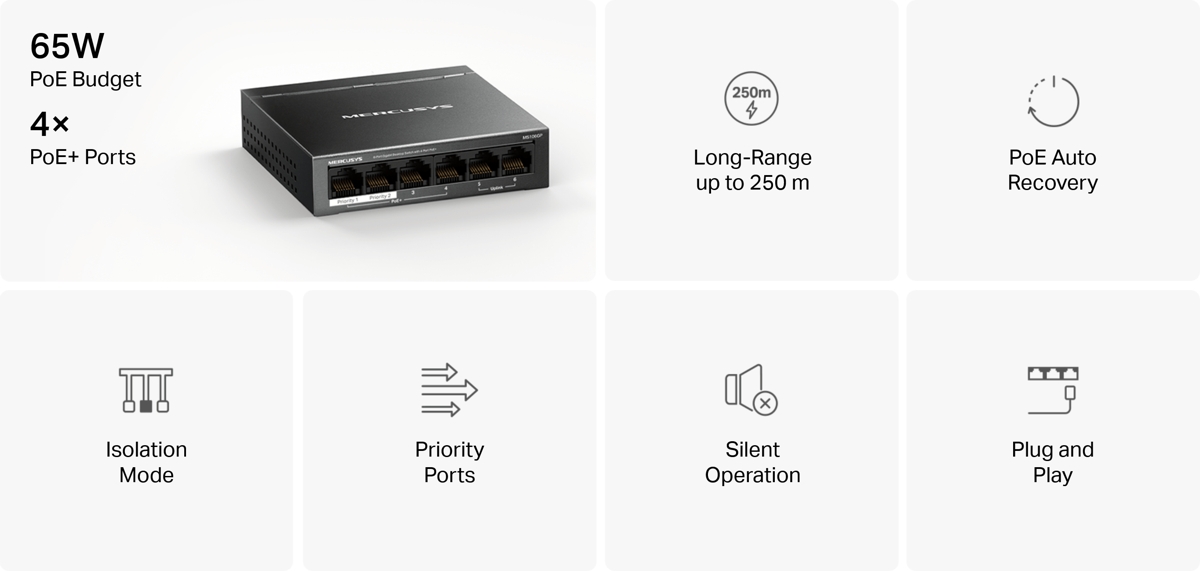

MERCUSYS MS106GP, Gigabit PoE switch

Product description

The MERCUSYS MS106GP is an unmanaged PoE switch with a switching capacity of 12Gbps, (4) 1Gbit PoE+ ports and (2) 1Gbit uplink ports (internet and NVR). The downlink ports support PoE+ with a total PoE budget of 65W. It is powered via a 53.5V/1.31A DC connector and its maximum power consumption is 4.5W (without PoE load).

Key features

• (4) 1Gbit PoE+ ports and (2) 1Gbit uplink ports
• Ports 1-4 support 802.3af/at PoE+ with up to 30W/port and a total budget of 65W
• Priority ports - prioritized traffic on ports 1–2
• PoE auto recovery - automatically reboots unresponsive PoE devices
• Isolation mode - ports 1-4 are isolated, each PoE port can communicate only with uplink ports
• Extend mode - extends the transmission distance of PoE ports up to 250m at 10Mbps
• Passive cooling - silent operation suitable for office environments

Package contents

• Device
• Power adapter
