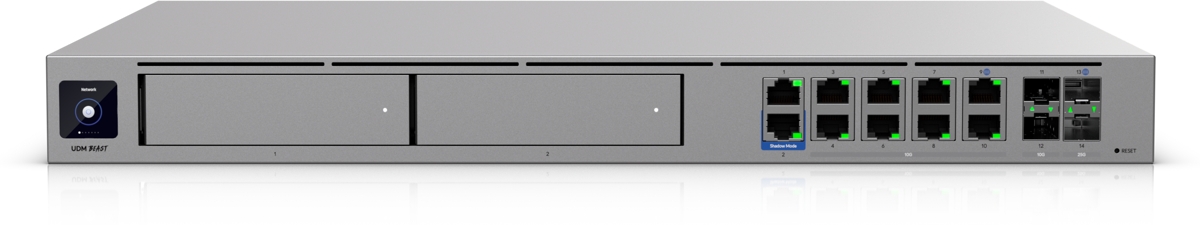

Ubiquiti Dream Machine Beast

Product description

The Ubiquiti Dream Machine Beast is an all-in-one UniFi router with IDS/IPS throughput up to 25Gbps, equipped with (8) 10G ports, (2) 1G ports, (2) SFP28 slots, (2) SFP+ slots and (2) 2.5"/3.5" HDD/SSD bays for camera recording. It also supports VPNs and SD-WAN, features (1) 128GB SSD and (1) console port, allows redundant power supply as well as operation of a second UDM-Beast in shadow mode for high availability and can handle more than 7500 clients.

Key features

• (2) SFP28 slots, (2) SFP+ slots, (8) 10Gbps ports, (2) 1Gbps ports
• Multi-WAN with load balancing
• Support for redundant power via USP-RPS
• HA operation with a secondary UDM-Beast in shadow (standby) mode
• Support for UniFi Network, Protect, Access, Talk and Connect applications, management of more than 750 UniFi devices and over 7500 clients
• Connection of up to 40 cameras at 4K (8MP), up to 60 cameras at 2K (4MP) or up to 100 cameras at FullHD (2MP)

Package contents

• Device
• Power cable
• Mounting accessories

Download

https://dl.ui.com/qig/udm-beast/#index

Quick Install Guide

https://techspecs.ui.com/unifi/cloud-gateways/udm-beast#datasheet

Datasheet
