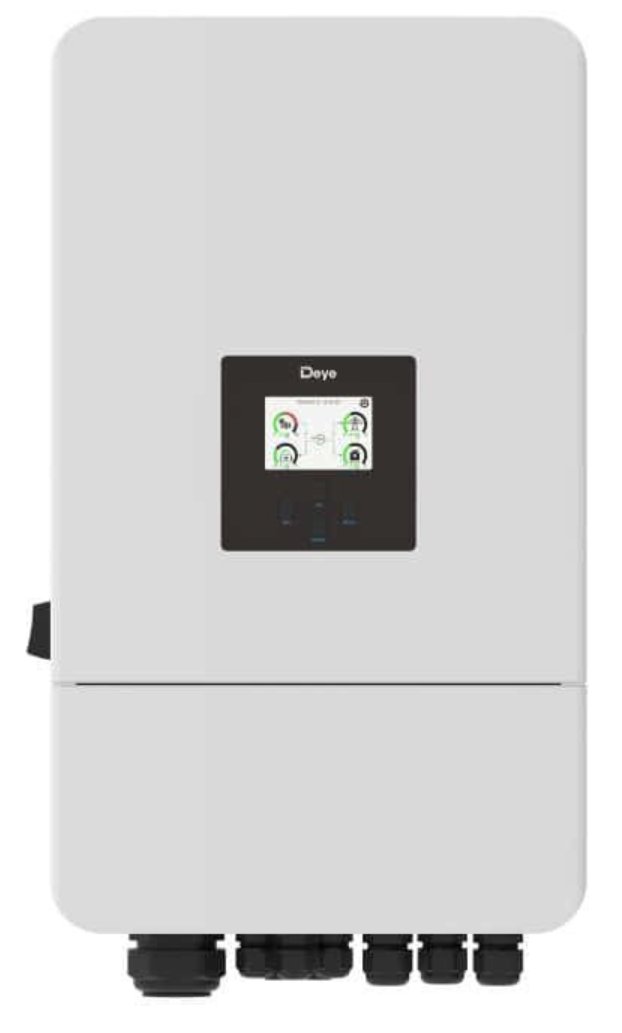

DEYE SUN-12K-SG05LP3-EU-SM2 Hybrid inverter 12kW, 3 phases
Planned Delivery Date by Courier to you 13-05-2026
Product description
The Deye SUN-12K belongs among the most advanced three-phase hybrid inverters in its class. It combines a powerful solar inverter with an intelligent low-voltage battery charger (40–60 V) and, thanks to its wall-mounted bracket, offers easy and safe installation.
It supports an asymmetric three-phase output of 0–6 kW per phase, allows short-term overload of 100% for up to 10 seconds, and thus provides maximum flexibility for various residential and commercial applications.
The integrated color LCD display simplifies system setup and monitoring, while communication with batteries is handled via CAN or RS485, ensuring compatibility with the latest models from various manufacturers.
The unique Smart Load port enables connection of a generator, a string inverter, or a heating element for water heating. This allows you to utilize functions similar to a Wattrouter and efficiently manage surplus energy.
Key Features
- Three-phase asymmetric output (0–6 kW per phase)
- 2× MPPT inputs (2+2 configuration)
- MPPT voltage range: 200–650 V
- Charging/discharging current: up to 240 A
- Communication: CAN / RS485 for BMS, Modbus RTU (e.g., Loxone or other external control systems), RS-232 for cloud dongle
- Smart Load, Grid Peak Shaving, Phase Balancing
- Solarman monitoring platform
- Wi-Fi dongle included
- Support for Ethernet / LTE modules
- Protection rating: IP65 (suitable for outdoor installation)
Package Contents
- Deye SUN-12K hybrid inverter
- Wall-mount bracket
- (4) concrete anchors
- (3) current transformers (100 A / 50 mA)
- Temperature sensor for Pb batteries
- Wi-Fi dongle
