Product description

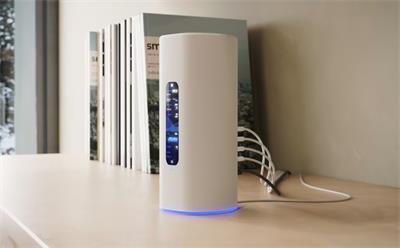

The Ubiquiti UDR-5G-Max is an all-in-one UniFi tri-band Wi-Fi 7 5G router operating simultaneously in the 2.4GHz, 5GHz and 6GHz bands to achieve a total throughput of up to 10.69Gbps. It is further equipped with (1) SFP+ slot, (4) 2.5G ports (1x PoE), (1) microSD slot for camera recording (preinstalled 64GB card), (2) nano SIM slots and eSIM support.
Key features
- (1) SFP+ slot, (4) 2.5Gbps ports (1x PoE), tri-band Wi-Fi 7
- Total throughput up to 10.69Gbps - 688Mbps at 2.4GHz (2x2), 4.3Gbps at 5GHz (2x2) and 5.7Gbps at 6GHz (2x2)
- Multi-WAN with load balancing and 5G/LTE failover
- (2) nano SIM slots and eSIM support, 5G/4G/3G with up to 3400Mbps downlink and 650Mbps uplink
- IDS/IPS throughput up to 2.3Gbps
- VPN support, including site-to-site VPN
- Supports UniFi Network, Protect, Access, Talk and Connect applications, managing over 30 UniFi devices and more than 300 clients
- Powered via 54V DC connector
Package contents
- Device
- Patch cable
- Power adapter 54V/1.1A
Technical parameters
LAN ports
Design
Desktop
Maximum modulation
4096 QAM
Supported VPN
L2TP, IPSec, OpenVPN, WireGuard, Site Magic, Identity Endpoint One-Click, Teleport Zero-Configuration
Pre-installed controller
UniFi Network, UniFi Protect, UniFi Talk, UniFi Access, UniFi Connect
Max. WAN speed
2.5G
Operating mode
AP Router, Cellular router
Management
UniFi Network
Wireless frequency
LTE, 3G (GSM), 2.4 + 5 + 6 GHz (triple band), 5G (GSM)
WiFi standards
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
4300
Transmission speed - 2.4GHz [Mb/s]
688
Transmission speed - 6GHz [Mb/s]
5700
Tx power 2.4GHz [dBm]
23
Tx power 5GHz [dBm]
26
Tx power 6GHz [dBm]
22
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
6GHz MIMO
2 x 2
Type of antenna
Built-in
Purpose
Indoor
Antenna gain [dBi]
4, 5, 8
Integrated 4G/LTE radio part
Yes
Power type
DC connector
4G/LTE bands support
(1) 2100 MHz, (2) 1900 MHz, (3) 1800 MHz, (4) 1700 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (38) 2600 MHz, (40) 2300 MHz, (5) 850 MHz, (41) 2500 MHz, (12) 700 MHz, (42) 3500 MHz, (43) 3700 MHz, (25) 1900 MHz, (26) 850 MHz, (39) 1900 MHz, (28) 700 MHz, (66) 1700 MHz, (71) 600 MHz, (13) 700 MHz, (18) 850 MHz, (19) 850 MHz, (32) 1500 MHz, (34) 2000 MHz, (14) 700 MHz
5G bands support
(n1) 2100 MHz, (n3) 1800 MHz, (n5) 850 MHz, (n7) 2600 MHz, (n8) 900 MHz, (n20) 800 MHz, (n28) 700 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n75) 1500 MHz, (n76) 1500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n79) 4700 MHz, (n66) 1700 MHz, (n71) 600 MHz, (n26) 850 MHz, (n2) 1900 MHz, (n12) 700 MHz, (n13) 700 MHz, (n14) 700 MHz, (n18) 850 MHz, (n25) 1900 MHz, (n30) 2300 MHz, (n48) 3500 MHz, (n70) 2000 MHz
Fans
No
LAN speed
(4) 10/100/1000/2500Mbps
LAN ports 2.5G
4
Gigabit LAN
Yes
PoE type
PoE-Out (only)
SFP+ cages
1
Optical interfaces
(1) 1/10Gbps
PoE-Out standards
802.3af
PoE Out ports
1
PoE budget [W]
15
Max. power consumption [W]
35
Power via connector/terminal
54V / 1,1A
Buttons
Reset
Operating temperature [°C]
0 up to 40
Weight [g]
1400
Width [mm]
110
Height [mm]
250
Depth [mm]
110
CPU
ARM Cortex-A53
CPU frequency [MHz]
1500
CPU cores
4
SIM slot
Yes
SIM slots quantity
2
RAM [MB]
3072
Other features
LCD display
