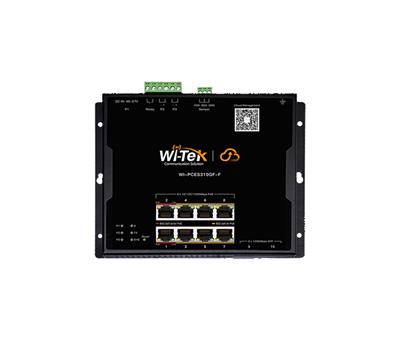

Wi-Tek WI-PCES310GF-F industrial Cloud Easy Smart PoE switch, 8x PoE
Planned Delivery Date by Courier to you 15-04-2026
Product description
The industrial flat-design PoE switch Wi-Tek WI-PCES310GF-F is equipped with (8) 1Gbps ports, two of which support PoE-OUT 802.3af/at/bt with up to 90 W per port, while the remaining six support 802.3af/at up to 30 W per port. The total PoE budget is 145 W. For fiber connectivity, the switch also provides (2) SFP slots. It is powered via a DC jack or terminal block DC 48–57 V / max 6 A, with a maximum power consumption of 5 W. The device supports multiple independent power sources for redundant power input. Its flat design allows installation on a wall, DIN rail, and thanks to the included magnetic mounts, it can also be attached to cabinet walls or other metal surfaces.
Key Features
- Wi-Tek Cloud Management: easy device management and monitoring via the cloud portal or mobile app, allowing you to manage devices anytime, from anywhere.
- Flat Design: slim profile enables installation even in narrow spaces.
- Redundant Power Input: ability to connect multiple power sources for redundancy.
- Installation Options: desktop, wall-mounted, or magnetically attached to a cabinet or other metal surface.
- Temperature and Humidity Monitoring: the integrated sensor allows you to monitor temperature and humidity.
- ONVIF: automatic detection of IP cameras supporting the ONVIF protocol.
Note: An Eweb channel tunnel can only be created if the easy smart switch is connected to another type of Wi-Tek cloud management device, such as a cloud L2/L3 managed switch, gateway, wireless AP, etc.
Package Contents
- Device
- Quick Installation Guide
- DIN rail mounting accessories
- (4) Magnetic mounts
- (2) Terminal blocks
- Temperature and humidity sensor
