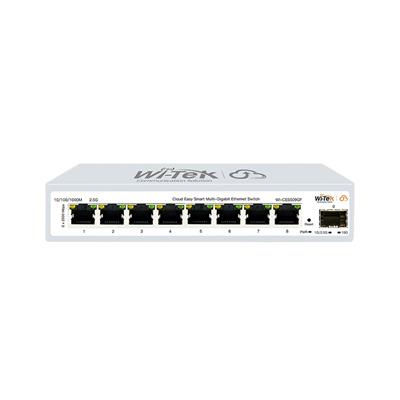

Wi-Tek WI-CES509GF Cloud Easy Smart multi-gigabit switch
Your price incl. VAT (20.0%)
606.80 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 15-04-2026
You have a choice of 2 variants
31.31 RON excl. VAT
52.06 RON excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
67.69 RON excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
67.69 RON excl. VAT
Product description

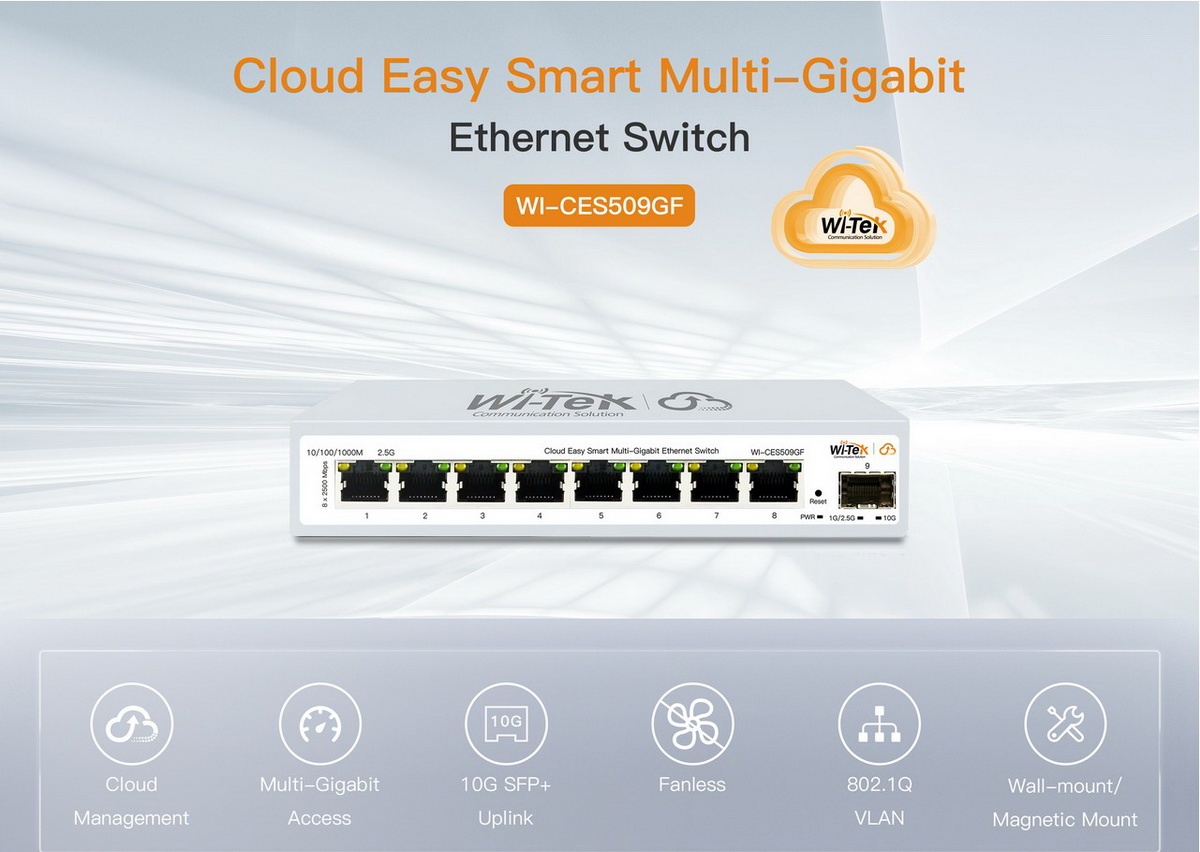

The Wi-Tek WI-CES509GF is a managed switch with (8) 2.5G ETH ports and (1) SFP+ port supporting 1G/2.5G/10G speeds. The switch is powered via a DC 12V / 1A power adapter, with a maximum power consumption of 7.86 W. It features a desktop design with wall-mount capability, and thanks to the included magnetic brackets, it can also be mounted on the walls of a metal cabinet or other metal surfaces.
Key Features
- Wi-Tek Cloud Management: Easy management and monitoring of the device via the cloud portal or mobile app allows you to manage the device from anywhere at any time.
- Connectivity: (8) ETH ports (10M/100M/1G/2.5G) and (1) SFP+ port (1G/2.5G/10G).
- ONVIF: Automatic detection of IP cameras supporting the ONVIF protocol.
- Installation: Desktop, wall-mount, or magnetic attachment to a cabinet or other metal surface.
Note: An Eweb channel tunnel can only be created when the Easy Smart Switch is connected to another type of Wi-Tek cloud-managed device, such as a cloud L2/L3 management switch, gateway, wireless AP, etc.
Package Contents
- Device
- Power adapter
- Quick Installation Guide
- (4) Magnetic brackets
Download
Technical parameters
LAN ports
Jumbo frame [Bytes]
12000
Design
On the wall, Desktop
Switchning capacity [Gbps]
60
MAC address table
4000
Web management
Yes
Management
Web management, Wi-Tek Cloud
Features
VLAN
Power type
DC connector
Fans
No
LAN speed
(8) 100/1000/2500 Mbps
Max. LAN ports speed
2.5G
RJ45 ports 2.5G
8
SFP+ cages
1
Optical interfaces
(1) 1/2.5/10Gbps
Max. power consumption [W]
7,9
Chassis design
Metal
Power via connector/terminal
12V / 1A
Buttons
Reset
Operating temperature [°C]
-10 up to 50
Weight [g]
370
Depth [mm]
94
Width [mm]
168
Height [mm]
32
Default IP address
Dynamic from DHCP, 192.168.0.1
Default login and password
Is set by the user at the first startup
