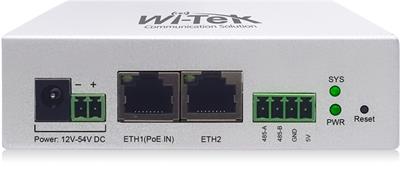

Wi-Tek WI-IOT100 Cloud Controller for Solar Switch
Your price incl. VAT (20.0%)
202.27 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 15-04-2026
Product description
Wi-Tek WI-IOT100 is an IoT cloud controller for solar powered PoE switches, enabling remote monitoring, management, and visualization of photovoltaic system and battery data (including real-time and trend monitoring) via Wi-Tek Cloud. The device features (1) 10/100Mbps PoE-In port, (1) 10/100Mbps port and (1) RS-485 for communication with the solar switch. Power can be supplied via PoE or 12-54 VDC connectors.
Package contents
- Device
- DIN rail mounting accessories
- Quick Installation Guide
Download
Technical parameters
LAN ports
Power over Ethernet
802.3af
Design
Desktop, DIN rail
Management
Wi-Tek Cloud, Web management
Power type
PoE, DC terminal
Fans
No
LED indication
Yes
LAN speed
(2) 10/100Mbps
LAN ports 100M
2
Internal memory
8 MB
Max. power consumption [W]
1,8
Serial port
RS-485
Chassis design
Metal
Power via connector/terminal
12 .. 54V DC
Buttons
Reset
Operating temperature [°C]
-20 up to 65
Weight [g]
210
Depth [mm]
74
Width [mm]
105
Height [mm]
30
Color
Silver
Default IP address
192.168.1.88
Default login and password
- / 12345678
RAM [MB]
64
