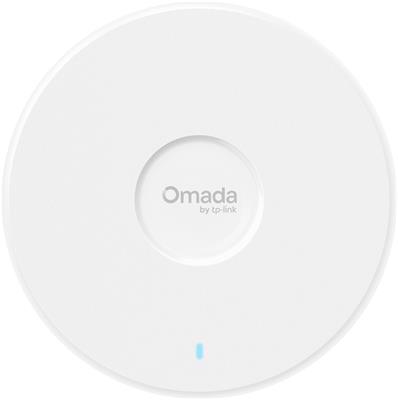

TP-Link EAP787, Tri-Band Wi-Fi 7 AP

Product description

The TP-Link EAP787 is a high-performance tri-band Wi-Fi 7 access point operating simultaneously in the 2.4GHz, 5GHz and 6GHz bands, delivering throughput of up to 12.2Gbps, featuring (1) 10G PoE-In port and supporting modern technologies such as MU-MIMO, OFDMA, fast roaming and Omada Mesh.

Key features

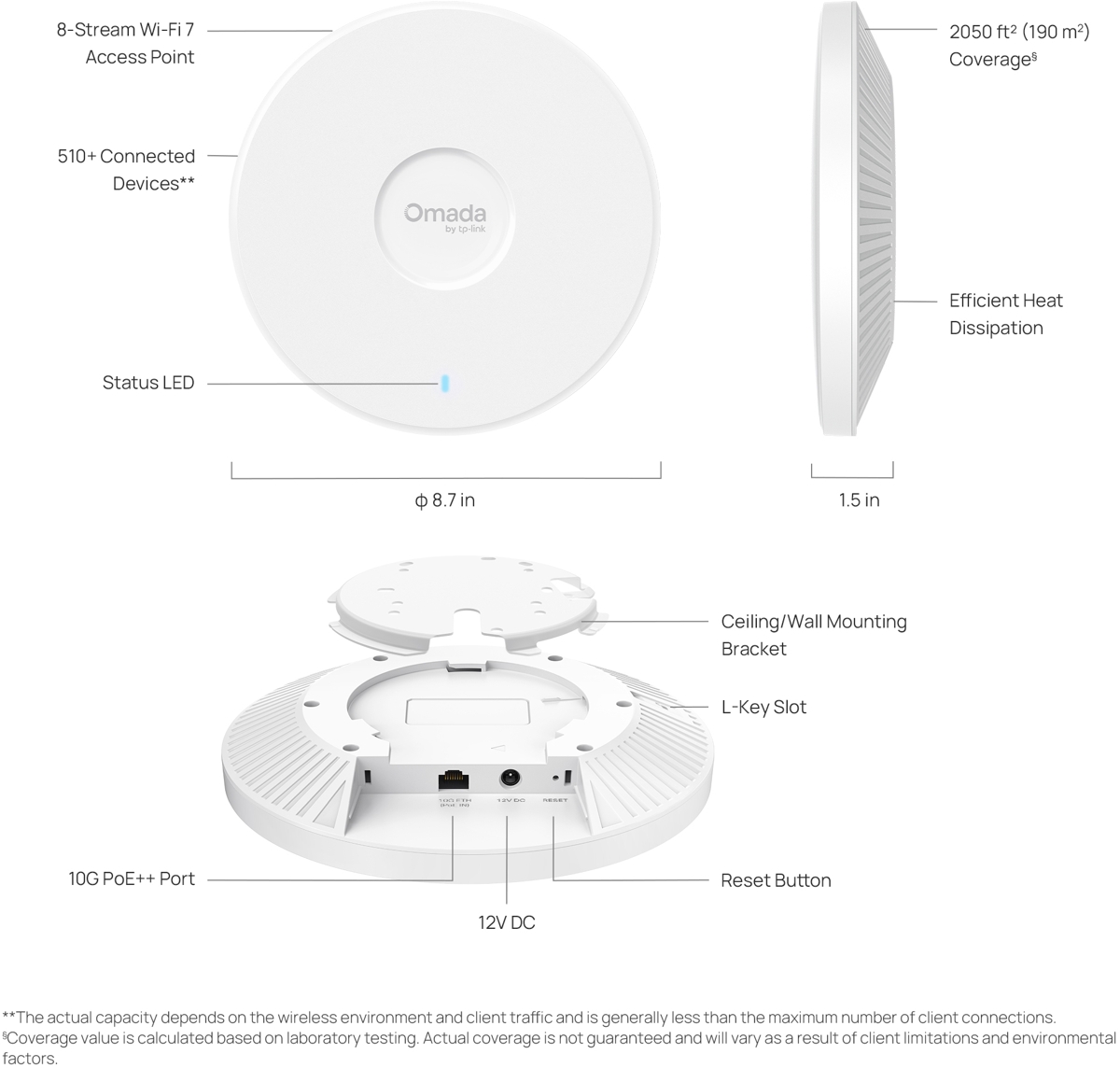

• (1) 10Gbps 802.3bt PoE-In port and tri-band 8-stream Wi-Fi 7
• Total wireless throughput up to 12.2Gbps - 688Mbps on 2.4GHz (2x2), 5765Mbps on 5GHz (4x4) and 5765Mbps on 6GHz (2x2)
• MU-MIMO and OFDMA - more efficient operation and simultaneous connectivity for multiple devices
• Multi-Link Operation (MLO) - send and receive data simultaneously across different bands to increase throughput and reduce latency
• 320MHz channels - double the channel width = higher throughput (for 6GHz)
• Dedicated RF scanning - offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance
• Fast roaming - seamless handover between access points

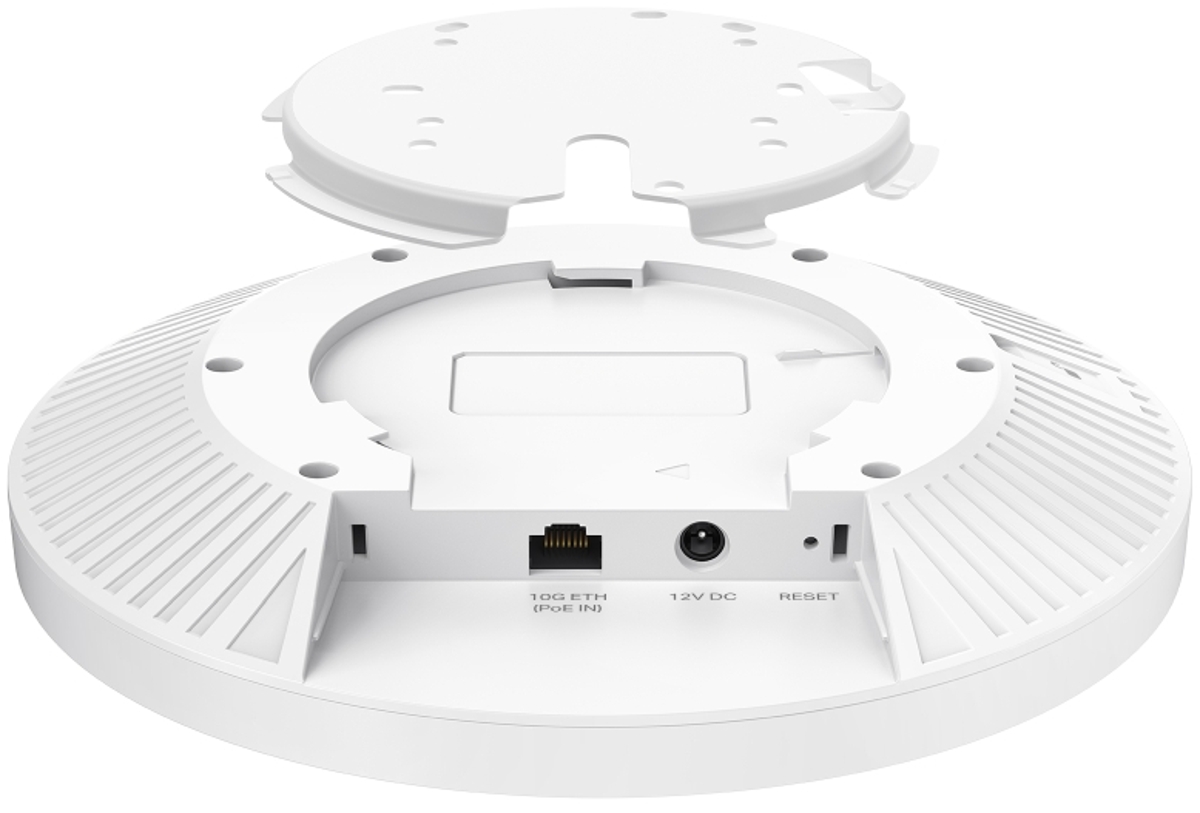

• Powered via 802.3bt/at PoE or 12VDC connector

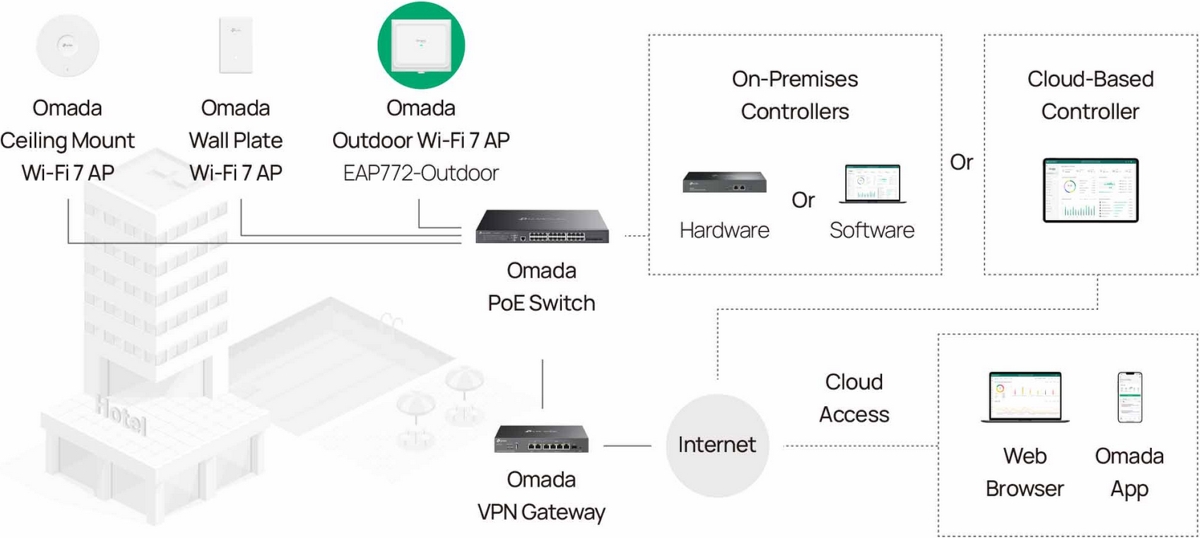

The easy way to centralized management

You can easily manage and monitor hundreds of EAP access points - all in one place. TP-Link Omada Controller software offers an intuitive interface for controlling the entire network. Keep the entire network and its mapping under control from any computer connected to the network. There are no additional costs, nor is there any need for special training. Managing a corporate Wi-Fi network has never been so efficient and cost-effective.

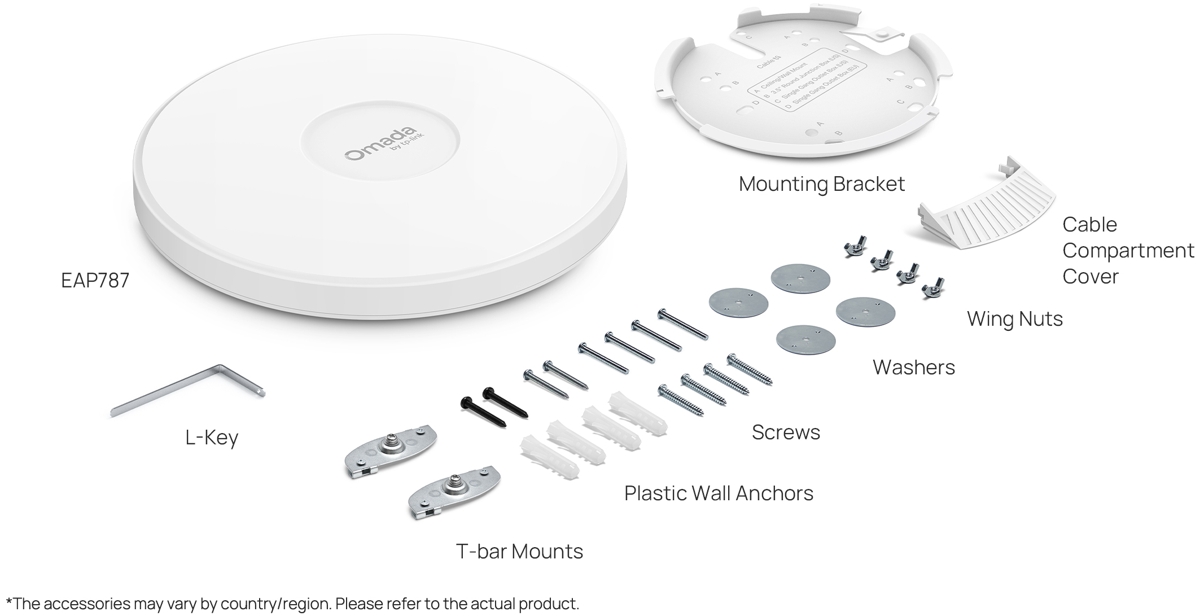

Package contents

• Device
• Mounting bracket
• Mounting accessories

Download

https://download.discomp.cz/TP-LINK/Datasheets/Datasheet_EAP787%20v1%20-%20%E6%9B%B4%E6%96%B0AFC%20disclaimer.pdf

Datasheet

https://download.discomp.cz/TP-LINK/Userguides/7100002091_EAP787Multi-model_IG_120x110.pdf

Quick Install Guide
