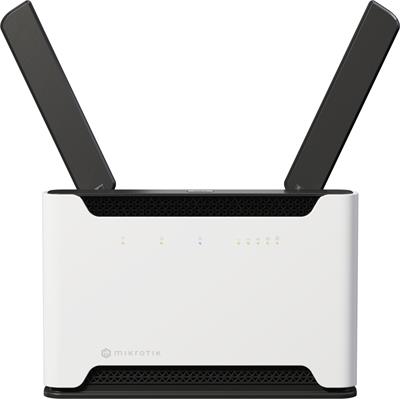

MikroTik S53UG+5HaxD2HaxD-TC&R11e-LTE7, Chateau LTE7 ax

MikroTik S53UG+5HaxD2HaxD-TC&R11e-LTE7, Chateau LTE7 ax
Your price incl. VAT (20.0%)
725.12 RON
Ordered for stock
Delivery Planned Delivery Date by Courier to you 11-02-2026
MikroTik
Manufacturer
Product number
S53UG+5HaxD2HaxD-TC&R11e-LTE7
Product Code
RL030.387
Warranty
24 months

Product description

The MikroTik Chateau LTE7 ax is an elegant dual-band Wi-Fi 6 routerboard operating simultaneously in the 2.4GHz and 5 GHz bands, delivering a maximum total throughput of up to 1.77Gbps (2.4GHz 2x2 - 574Mbps, 5GHz 2x2 - 1200Mbps) and is equipped with (1) 2.5G port, (4) 1Gbit ports and (2) external Wi-Fi antennas.


MikroTik Chateau LTE7 ax Banner

The router is supplied together with the R11e-LTE7 modem. The modem supports 4G LTE (Cat. 7) and 3G networks, with speeds of up to 300Mbps downlink and 100Mbps uplink. It utilizes 2x2 MIMO on the downlink and carrier aggregation, which allows the simultaneous use of multiple LTE bands. This feature improves response times and connection stability in high-traffic areas and can enhance transmission efficiency in locations with weaker signal conditions.

Package contents

  • Device
  • Power adapter 24V/1.2A
  • UTP patch cable 1.5m

Download

https://download.discomp.cz/MikroTik/Datasheets/Chateau_LTE7_ax.pdf
Download Datasheet

Technical parameters

LAN ports
Sensitivity [dBm]
-100
Design
Desktop
Operating mode
Cellular router, AP Router
Wireless frequency
2.4 + 5 GHz (dual band), LTE, 3G (GSM)
WiFi standards
802.11a, 802.11ac, 802.11ax, 802.11b/g, 802.11n
Transmission speed - 5GHz [Mb/s]
1201
Transmission speed - 2.4GHz [Mb/s]
574
Tx power 2.4GHz [dBm]
24
Tx power 5GHz [dBm]
24
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Built-in, Detachable
Internal antennas
4
Detachable antennas
2
Purpose
Indoor
Roaming
Yes
Antenna gain [dBi]
3, 6
Integrated 4G/LTE radio part
Yes
Power type
DC connector
4G/LTE bands support
(1) 2100 MHz, (20) 800 MHz, (28) 700 MHz, (3) 1800 MHz, (32) 1500 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (5) 850 MHz, (7) 2600 MHz, (8) 900 MHz
Operating system
RouterOS v7 - L4
LAN ports
5
LAN speed
(1) 1G/2.5Gbps + (4) 10/100/1000Mbps
Gigabit LAN
Yes
Max. power consumption [W]
22
USB ports 2.0
1
Power via connector/terminal
12 .. 28V DC
Buttons
Reset, mode
Operating temperature [°C]
-40 up to 70
Width [mm]
240
Height [mm]
156
Depth [mm]
44
CPU
IPQ-6010
CPU frequency [MHz]
1800
CPU cores
4
SIM slot
Yes
SIM slots quantity
1
USB
Yes
IPv6 support
Yes
Default IP address
192.168.88.1
Internal storage [MB]
128
RAM [MB]
1024
Default login and password
admin / (preset password, see label/engraving)
