MERCUSYS MS128GP Gbit PoE Switch
Your price incl. VAT (20.0%)
856.16 RON
Ordered for stock
No confirmed delivery date
23.57 RON excl. VAT
22.73 RON excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
22.09 RON excl. VAT
23.17 RON excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
30.07 RON excl. VAT
Product description

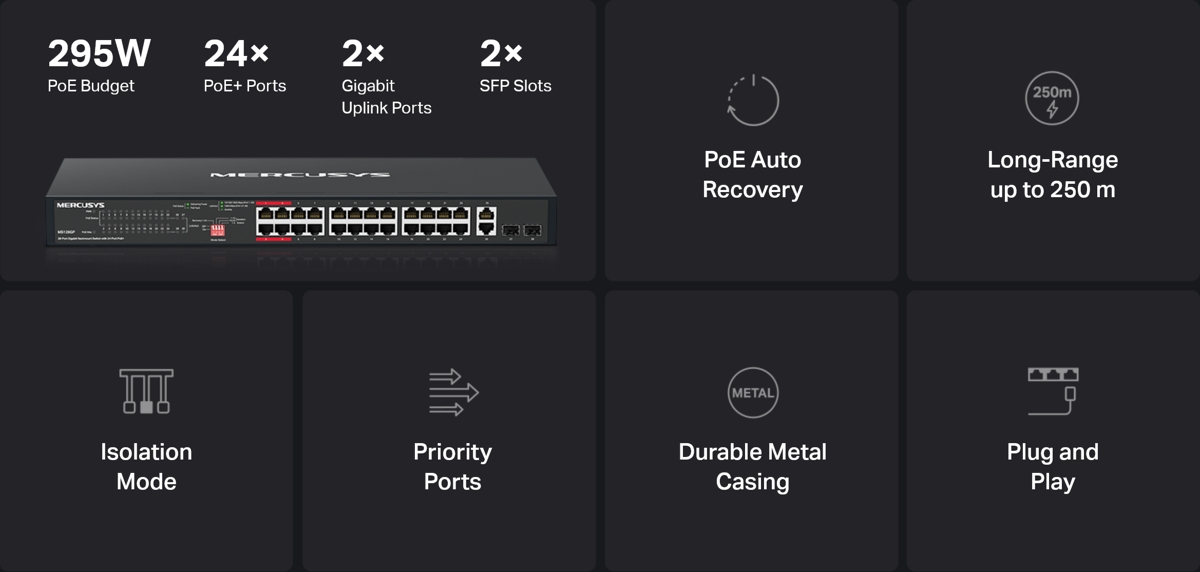

The MERCUSYS MS128GP is an unmanaged Gigabit PoE switch with a switching capacity of 56Gbps, (24) Gbit PoE+ ports, (2) Gbit ports and (2) SFP slots with a total PoE budget of 295W. The maximum device power consumption is 42W (without PoE load).
Key features
- (24) Gbit PoE+ ports, (2) Gbit ports and (2) SFP slots
- Ports 1–24 support PoE+ 802.3af/at with power output of up to 30W/port and a total budget of 295W
- Priority ports - traffic prioritization for ports 1-4
-
DIP switch modes:
- PoE Auto Recovery - automatically reboots dropped or unresponsive PoE-powered devices
- Isolation 1-12 - downlink ports 1–12 can forward traffic only to the uplink port
- Isolation 13-24 - downlink ports 13-24 can forward traffic only to the uplink port
- Extend - increases PoE transmission distance up to 250m at 10Mbps on ports 1-4
Package contents
- Device
- Power cable
- Mounting brackets and fittings
- Installation Guide
Download
Technical parameters
LAN ports
Design
Rackmount
Switchning capacity [Gbps]
56
MAC address table
8000
Features
L2
Power type
Mains power (230V)
Fans
Yes
LAN ports
26
LAN speed
(26) 10/100/1000Mbps
Max. LAN ports speed
1G
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
24
PoE budget [W]
295
Long range PoE - up to 250m
Yes
Max. power consumption [W]
337
Chassis design
Metal
Operating temperature [°C]
-10 up to 45
Depth [mm]
180
Width [mm]
440
Height [mm]
44
