Ubiquiti UDB-Switch, UniFi 2.5G PoE switch with Wi-Fi 7 bridge

Product description

Ubiquiti Device Bridge Switch is a 2.5Gbit UniFi PoE switch with support for wireless Wi-Fi 7 uplink, (1) 10Gbit PoE+ port, (7) 2.5Gbit PoE+ ports and a PoE budget of up to 185W*. The maximum power consumption of the device is 25W (without PoE load).

Key features

• (1) 10Gbit PoE+ port and (7) 2.5Gbit PoE+ ports
• 802.3af/at PoE+ with up to 30W/port and a total budget of 185W *when using a 210W power adapter (35W budget with the included 60W adapter)
• STR MLO enables simultaneous, aggregated use of the 5GHz and 6GHz bands, providing full-duplex connectivity and significantly higher throughput
• Dual-band Wi-Fi 7 (802.11be) bridge with STR MLO support and total throughput of up to 10.1Gbps (6Ghz + 5Ghz)
• UniFi Wi-Fi Auto-Link for automatic connection to UniFi APs

Package contents

• Device
• Power adapter 54V/1.1A
• Wall-mount kit

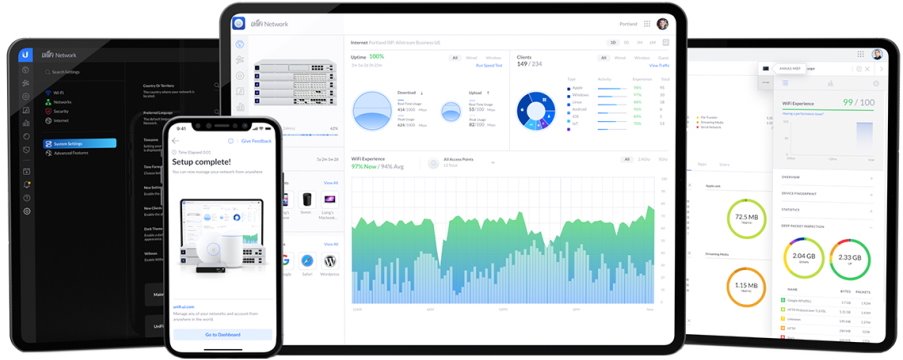

Management via UniFi Network Server

The UDB-Switch does not include a web interface but is centrally managed through the UniFi Network Server with support for the UniFi mobile app. The UniFi Network Server and mobile app allow administrators to configure and monitor nearly all switch functions through a graphical user interface from anywhere.
