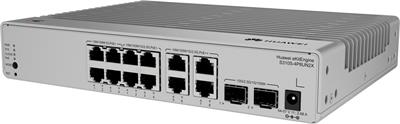

Huawei S310S-4P8UN2X 2.5G Cloud PoE Switch
Your price incl. VAT (20.0%)
1,334.77 RON
Ordered for stock
No confirmed delivery date
You have a choice of 2 variants
30.52 RON excl. VAT
50.83 RON excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1270/Rx1330nm, 10km, 1x LC connector, DDMML-S+2733-10
67.44 RON excl. VAT
MaxLink 10G SFP+ optical module, WDM(BiDi), SM, Tx 1330/Rx1270nm, 10KM, 1x LC connector, DDMML-S+3327-10
67.44 RON excl. VAT
Product description
Huawei S310S-4P8UN2X is a reliable managed cloud L2+ PoE switch with a switching capacity of 88Gbps, (4) Gbit PoE+ ports, (4) 2.5G PoE+ ports, (4) 2.5G PoE++ ports and (2) SFP+ slots. It supports management via a local web interface as well as cloud management (eKit SNC / eKit mobile app). The maximum power consumption is 25.9W (without PoE load).
Key features
- (4) Gbit PoE+ ports, (4) 2.5G PoE+ ports, (4) 2.5G PoE++ ports and (2) SFP+ slots
- PoE 802.3af/at/bt with a total budget of 120W
- Perpetual PoE - ensures uninterrupted power supply to connected PoE devices even during switch restarts or upgrades
- Huawei Online Upgrade Platform (HOUP) - automatic one-click updates
- Passive cooling - silent operation, suitable for office environments
- L2+ functions: static and policy-based routing, ARP, DHCP
- Protection against DoS attacks and other security features
- Automatic loop prevention, VLAN, QoS, DHCP/IGMP snooping, link aggregation
Package contents
- Device
- Power adapter and cable
- Grounding cable
- Rack mounts
- Rubber feet
Technical parameters
LAN ports
Design
Rackmount
Packet forwarding rate [Mpps]
65
Switchning capacity [Gbps]
88
MAC address table
16000
Web management
Yes
Management
Web management, eKit cloud / eKit app, Mobilní aplikace
Features
L2+, VLAN, QoS, DHCP snooping
Power type
DC connector
"U" positions
1
Fans
No
LAN ports
12
LAN speed
(8) 100/1000/2500Mbps + (4) 10/100/1000Mbps
Max. LAN ports speed
2.5G
PoE type
PoE-Out (only)
SFP+ cages
2 (1G/10G support)
Optical interfaces
(2) 1G/2.5G/10G
PoE-Out standards
802.3af, 802.3at, 802.3bt
PoE Out ports
12
PoE budget [W]
120
Max. power consumption [W]
171
Chassis design
Metal
Power via connector/terminal
54 .. 57V DC
Buttons
Reset, mode
Operating temperature [°C]
-5 up to 45
Weight [g]
2490
Depth [mm]
180
Width [mm]
250
Height [mm]
44
Default IP address
192.168.1.253
Default login and password
Is set by the user at the first startup
