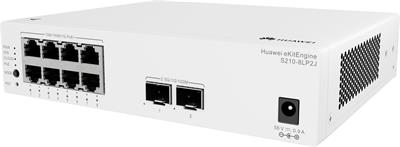

Huawei S210-8LP2J Gbit Cloud PoE Switch
Your price incl. VAT (20.0%)
432.88 RON
Ordered for stock
No confirmed delivery date
You have a choice of 6 variants
22.88 RON excl. VAT
23.71 RON excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20KM, 1x LC connector, DDMML-S3155-20
22.23 RON excl. VAT
23.32 RON excl. VAT
MaxLink 1.25G SFP optical module, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDMML-S5531-20
30.32 RON excl. VAT
Product description
Huawei S210-8LP2J is a reliable managed cloud L2 PoE switch with a switching capacity of 26Gbps, (8) Gbit PoE+ ports and (2) 2.5G SFP slots. The RJ45 ports support PoE+ with a 32W budget. It supports management via a local web interface as well as cloud management (eKit SNC / eKit mobile app). The maximum power consumption is 15.6W (without PoE load).
Key features
- (8) Gbit PoE+ ports and (2) 2.5G SFP slots
- PoE+ 802.3af/at with a total budget of 32W
- Perpetual PoE - ensures uninterrupted power supply to connected PoE devices even during switch restarts or upgrades
- Huawei Online Upgrade Platform (HOUP) - automatic one-click updates
- Passive cooling - silent operation, suitable for office environments
- Protection against DoS attacks and other security features
- Automatic loop prevention, VLAN, QoS and uplink port link aggregation
Package contents
- Device
- Power adapter and cable
- Rubber feet
Download
Technical parameters
LAN ports
Design
Desktop
Packet forwarding rate [Mpps]
19,5
Switchning capacity [Gbps]
26
MAC address table
8000
Web management
Yes
Management
Web management, eKit cloud / eKit app, Mobilní aplikace
Features
L2, VLAN, QoS
Power type
DC connector
"U" positions
1
Fans
No
LAN ports
8
LAN speed
(8) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2 (1G/2.5G support)
Optical interfaces
(2) 1G/2.5Gbps
PoE-Out standards
802.3at, 802.3af
PoE Out ports
8
PoE budget [W]
32
Max. power consumption [W]
56
Chassis design
Metal
Power via connector/terminal
56V DC
Buttons
Reset, mode
Operating temperature [°C]
-5 up to 45
Weight [g]
1350
Depth [mm]
160
Width [mm]
195
Height [mm]
44
Default IP address
10.1.1.100
Default login and password
Is set by the user at the first startup
