Huawei ICD OPS i7 D - Computer Module for IdeaHub
Your price incl. VAT (20.0%)
7,084.70 RON
❌ The item is not available. There is no option to order.
No confirmed delivery date
Product description

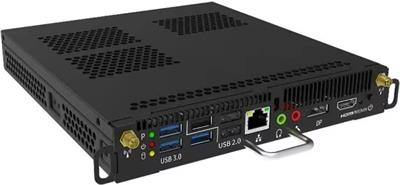

The Huawei ICD OPS i7 D is a compact computer module based on the Intel OPS-C standard, designed for integration with Huawei IdeaHub intelligent display. It is equipped with an Intel® Core™ i7-10700 processor and integrated Intel® UHD Graphics 630, supporting dual independent 4K output. Installation is simple - the module slides directly into the OPS slot, requiring no additional cables or external power supply.

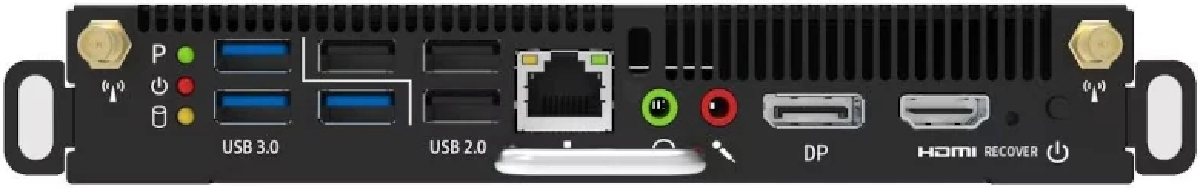

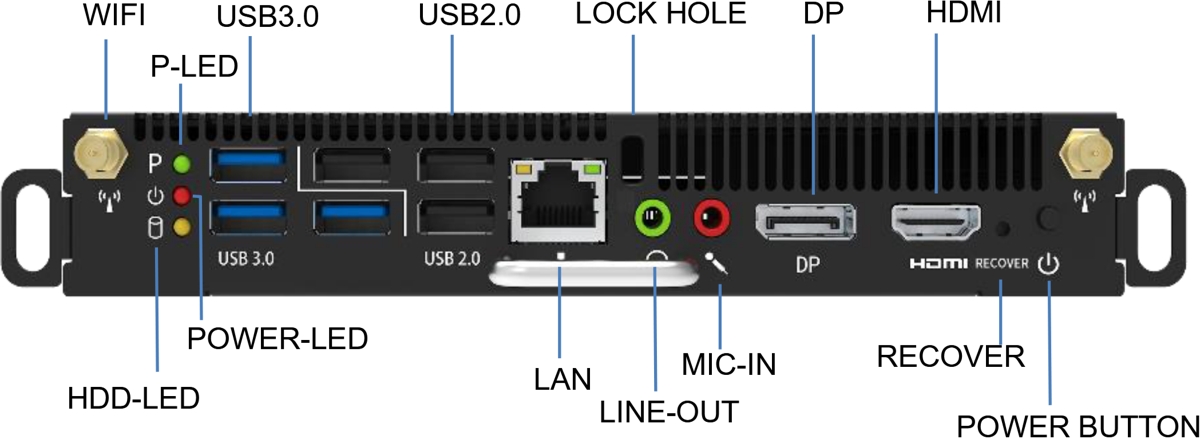

The module includes 16GB DDR4 RAM and a 512GB M.2 SSD for fast system startup. It also offers (1) M.2 2230 slot for further expansion and (1) RJ-45, (3) USB 3.0, (3) USB 2.0, (1) HDMI 1.4, (1) DisplayPort 1.2, audio line-out a mic-in. The operating system is Windows 10 IoT Enterprise.
Download
Technical parameters
LAN ports
USB ports 3.0
3
RAM memory size [GB]
16
M.2 slots
2
HDMI interface (resolution) [pixels]
4096 x 2160 (4K UHD)
DP interface (resolution) [pixels]
4096 x 2160 (4K UHD)
Audio
1 input, 1 output
LAN speed
(1) 10/100/1000Mbps
Max. power consumption [W]
90
USB ports 2.0
3
Buttons
Reset, power
Operating temperature [°C]
0 up to 40
Weight [kg]
1,5

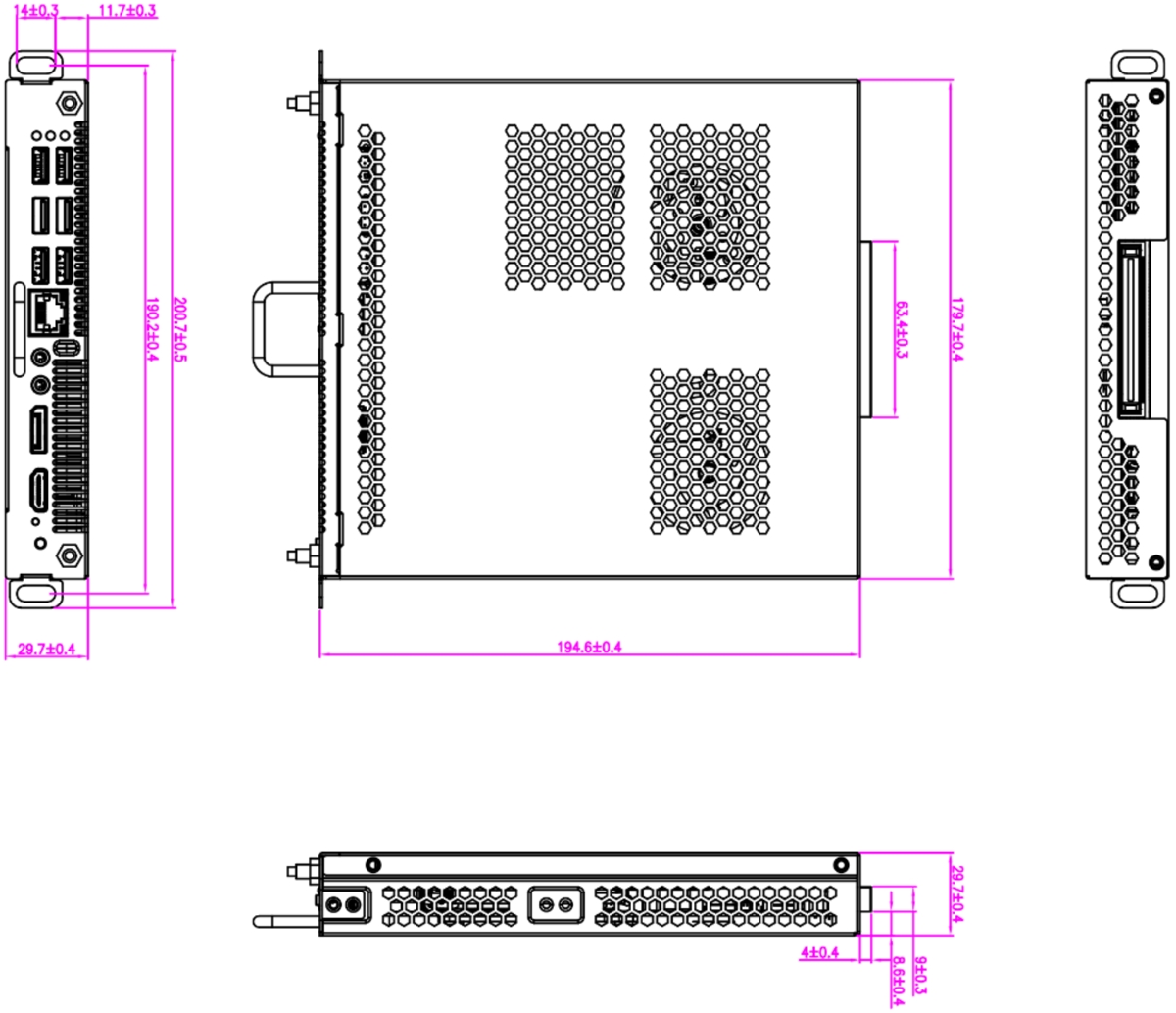

Width [mm]
180
Height [mm]
30
Depth [mm]
195
Color
Black
CPU
Core i7
Internal storage [MB]
512 GB
