Product description

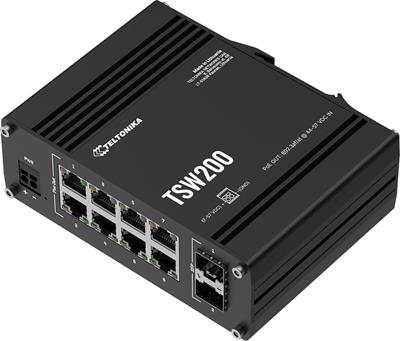

TSW200 is an industrial PoE switch from Teltonika Networks with an aluminum body, passive cooling, without management and the switch can also be installed on a DIN rail with integrated holder. The device offers 2 SFP ports with Gigabit speed, 8 LAN ports with 10/100/1000 Mbps speed, support 802.3af/at PoE (30 W/port) on all eight ports and a total PoE budget of 240 W . The power supply is handled by a 2-pin terminal block with input voltage 7 to 57 V.
PoE ports will not work if voltage is lower than 44 V DC used.
Key features
- SFP: 2 x SFP ports for long-range Fiber-optic communication
- PoE+: 8 x PoE+ ports with 802.af, 802.3at standard support
- POWER BUDGET: Total power budget at PSE up to 240 W
- ETHERNET: 8 x Gigabit Ethernet with speeds up to 1000 Mbps
- INDUSTRIAL PROTOCOLS: Profinet Class A conformance
Package contents
- Device
- QSG (Quick Start Guide)
Download
Technical parameters
LAN ports
Protection class
IP30
Design
Desktop, DIN rail
Switchning capacity [Gbps]
20
MAC address table
2000
Jumbo frame [Bytes]
9216
Power type
DC terminal
Fans
No
LAN ports
8
LAN speed
(8) 10/100/1000Mbps
Max. LAN ports speed
1G
PoE type
PoE-Out (only)
SFP cages
2
Optical interfaces
(2) 1000Mbps
PoE-Out standards
802.3af, 802.3at
PoE Out ports
8
PoE budget [W]
240
Max. power consumption [W]
246
Chassis design
Metal
Power via connector/terminal
7 .. 57V DC
Operating temperature [°C]
-40 up to 75
Width [mm]
132
Height [mm]
44
Depth [mm]
95
