Huawei OptiXstar EG8145B7N-50, GPON ONT Gateway, WiFi 7 - Bazar
used
-9%
Your price incl. VAT (20.0%)
235.75 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 05-11-2025
You have a choice of 3 variants
Product description
The product is fully functional and used at the exhibition. It may not contain complete accessories or original packaging.
Small scratches on the device, please see gallery photo.

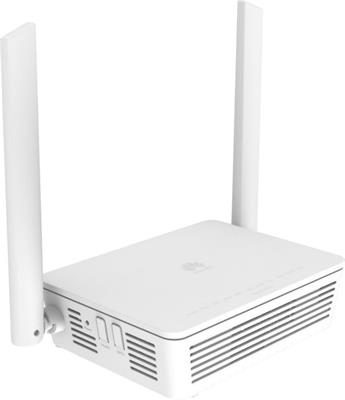

The Huawei OptiXstar EG8145B7N-50 is a GPON ONT device with support for Wi-Fi 7. It offers:
- 1x SC/APC uplink connector, 1x 2.5 GE and 3x GE ports, 1x POTS port, and 1x USB port.
- Support for Wi-Fi 7 (2.4 GHz and 5 GHz with speeds of 688 Mb/s and 2882 Mb/s), including advanced technologies such as MU-MIMO, WPA3, and Beamforming.
Package Contents
- Device
- Power adapter 12V / 1.5 A
Download
Technical parameters
LAN ports
MU-MIMO
Yes
Transmission speed - 5GHz [Mb/s]
2880
Transmission speed - 2.4GHz [Mb/s]
688
Security
WPA3 AES
Optical Connectors
(1) SC
2.4GHz MIMO
2 x 2
5GHz MIMO
2 x 2
Type of antenna
Fixed
Fixed antennas
2
Transmission speed
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]
1310 / 1490
Antenna gain [dBi]
7
Transfer type
GPON
Polishing type
APC
LAN ports
4
LAN speed
(1) 10/100/1000/2500Mbps + (3) 10/100/1000Mbps
Max. LAN ports speed
2.5G
PON SFP cages
1
Receiver sensitivity [dBm]
-27
Power via connector/terminal
12V / 1,5A
Buttons
Reset, WPS
Operating temperature [°C]
0 up to 40
Width [mm]
150
Height [mm]
40
Depth [mm]
108
