MaxLink 1.25G SFP optical HP module, WDM(BiDi), SM, Tx 1310/Rx1550nm, 20km, 1x LC connector, DDM, HPE comp.
Your price incl. VAT (20.0%)
37.92 RON
✅ In Stock < 10 Бр.
Planned Delivery Date by Courier to you 12-11-2025
You have a choice of 2 variants
Masterlan fiber optic patch cord, LCupc-SCupc, Singlemode 9/125, simplex, 1mLCupc/SCupc-SSM.9/125-01
5.42 RON excl. VAT
Masterlan fiber optic patch cord, LCupc-LCupc, Singlemode 9/125, simplex, 1mLCupc/LCupc-SSM.9/125-01
5.77 RON excl. VAT
MaxLink 1.25G SFP optical HP modul, WDM(BiDi), SM, Tx 1550/Rx1310nm, 20km, 1x LC connector, DDM, HPE komp.ML-S5531-20-HPE
31.60 RON excl. VAT
Product description

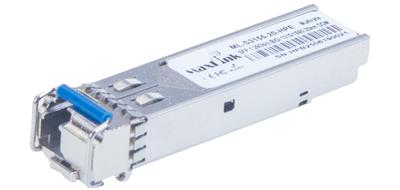

Maxlink ML-S3155-20-HPE is a 1.25G SFP WDM module with a Tx 1310 / Rx 1550 wavelength, a single LC connector, and a maximum transmission distance of 20km over single-mode optical fiber. The SFP module supports monitoring (DDM).
The LC connector in the SFP module uses UPC polishing.
HPE Compatibility
The modules are compatible with HPE Aruba Networking ProCurve AOS-S 2530/2540/2930/3810 and AOS-CX 6200/6300/6400/83xx/84xx/93xx/81xx switches.
Technical parameters
LAN ports
Compatibility
HPE
Tx power [dBm]
-9 up to -3
Format
SFP
For cable type
Single Mode
Optical Connectors
(1) LC
Transmission speed
1.25 / 1.25 Gbps
Wavelength - Tx/Rx [nm]
1310 / 1550
Distance [km]
20
Transfer type
WDM
DDMI - diagnostics
Yes
Polishing type
UPC
Receiver sensitivity [dBm]
-23
Operating temperature [°C]
0 up to 70
